Cartridge Heater

Tzheater’s cartridge heaters are versatile and efficient, designed to heat solids, liquids, and air in various applications. With customizable diameters and cold sections, they offer precise temperature control with a thermocouple. Commonly used in industries like bag sealing, hydraulic oil heating, motor oil heating, and food processing, these heaters can withstand extreme temperatures due to their high watt density design.

Made with high-quality nickel-chromium resistance wire and a durable stainless steel casing, Tzheater’s cartridge heaters are ideal for tight spaces like molds and heating plates. They are widely used in injection molding, die-casting, automotive, aerospace, and semiconductor industries. These heaters can reach temperatures up to 1,400ºF (760ºC).

Get a quote today, and explore our full range of industrial heating products, including infrared, immersion, and pipe heaters.

Wide Application

Industrial heaters are vital across many sectors, from plastics manufacturing to food processing, metals, and oil industries. Their wide application helps ensure efficient and reliable operations, allowing businesses to improve productivity, meet quality standards, and minimize downtime. By offering customizable solutions, these heaters can be adapted to meet the precise needs of any industrial environment.

Medical & Healthcare

Lorem ipsum dolor sit amet, consec tetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis.

Automotive & Transportation

Lorem ipsum dolor sit amet, consec tetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis.

Energy & Environmental

Lorem ipsum dolor sit amet, consec tetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis.

Electronics & Home Appliances

Lorem ipsum dolor sit amet, consec tetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis.

Specification of Cartridge Heater:

Standard Diameters: 0.260″, 0.315″, 0.375″, 0.430″, 0.475″, and 0.625″.
Versatile Options: Available in various sheaths, diameters, and ratings.
Insulated Sheath: Electrically insulated for safety.
Efficient Performance: Excellent insulation and heat conductivity.
Certifications: CSA, CSA US, and UL approved.

Key Features of Cartridge Heater:

1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
Pin leads option available

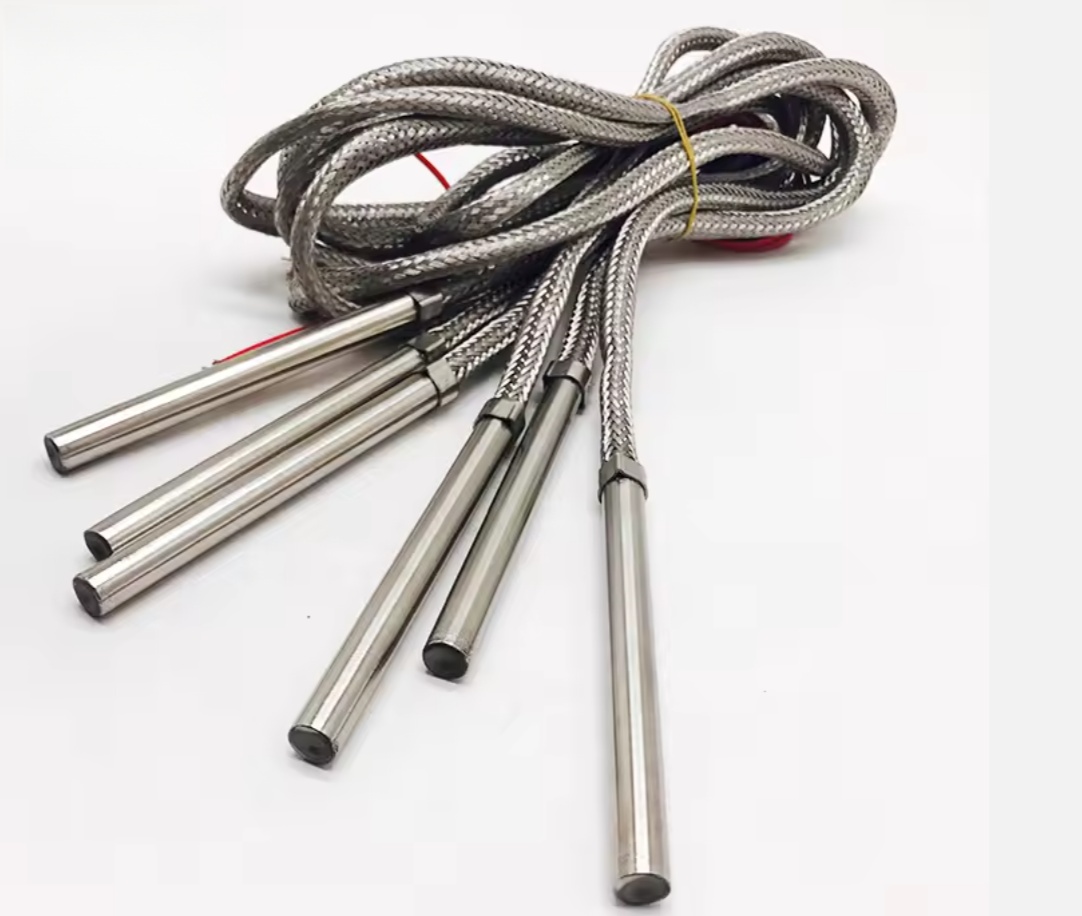

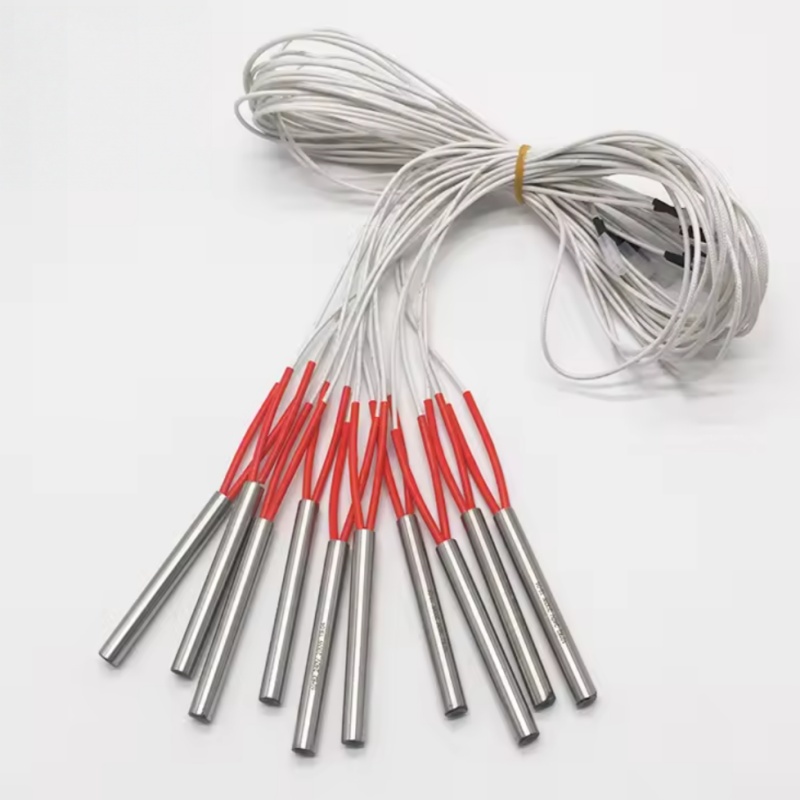

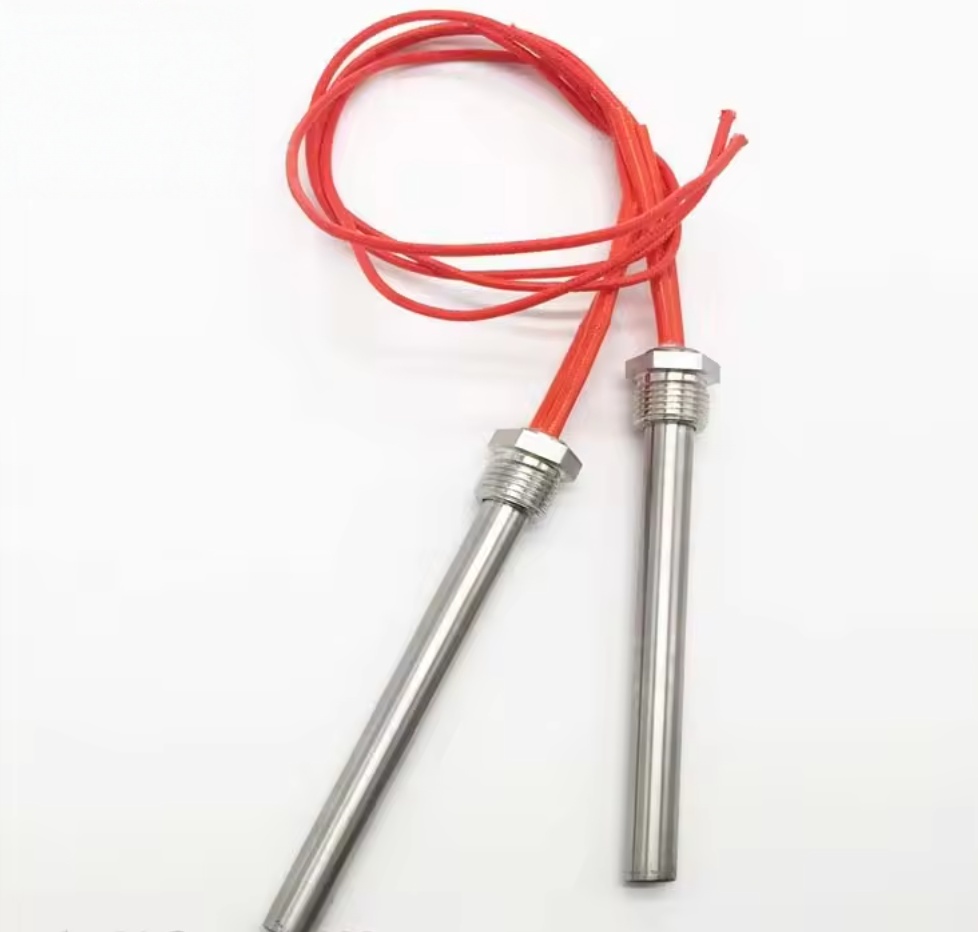

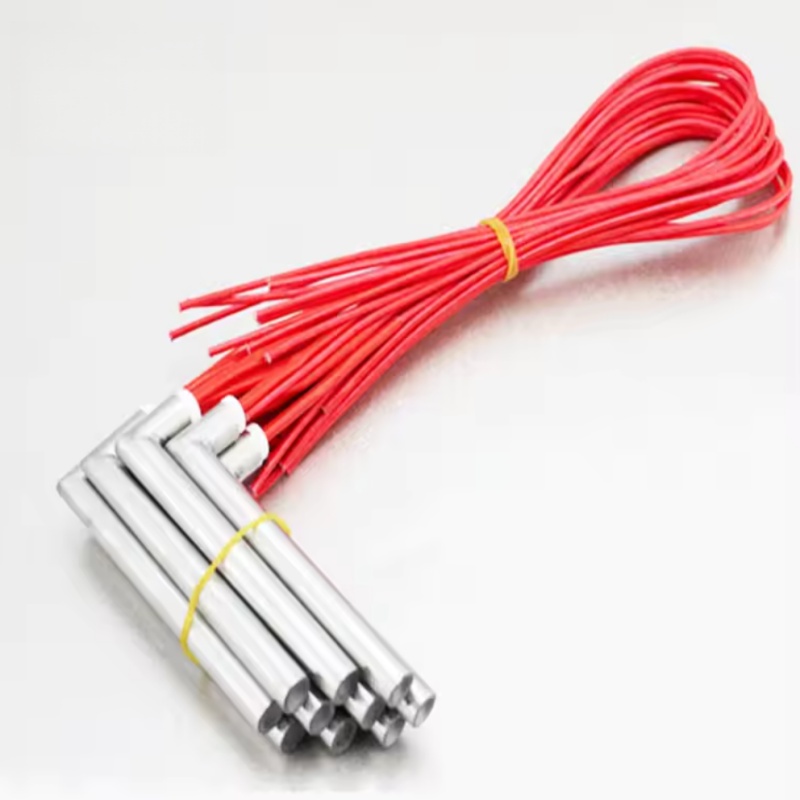

Cartridge Heater Range

Cartridge heaters are versatile heating elements widely used in industrial applications. They feature a cylindrical metal sheath housing an insulated heating coil. These heaters are typically inserted into pre-drilled holes in materials like metal or plastic, delivering focused heat to targeted areas.
