DS18B20 Temperature Sensor

A DS18B20 temperature sensor is a digital temperature sensor designed for temperature monitoring in industrial equipment, automation systems, water tanks, HVAC equipment, refrigeration systems, and other temperature-controlled applications. It uses a 1-Wire digital communication interface to connect with compatible controllers and monitoring systems.

EaseWise supplies DS18B20 temperature sensors for standard, industrial, and OEM applications. Available configurations include waterproof stainless steel probes, flexible cable options, aviation connectors, and threaded probe constructions. Probe diameter, cable length, connector, mounting method, and other specifications can be customized according to application requirements.

DS18B20 Temperature Sensor Configurations

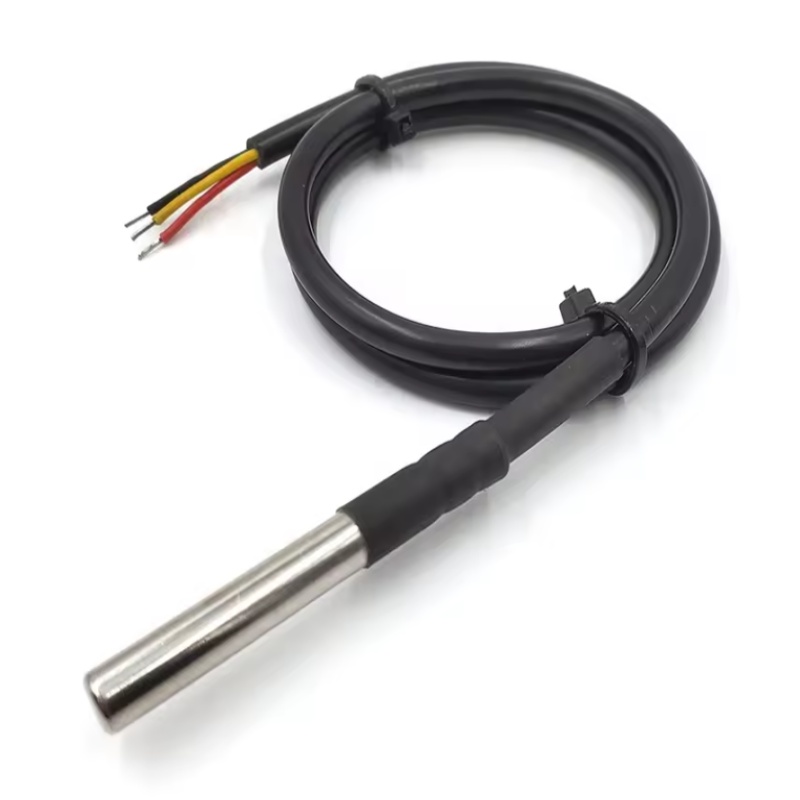

Waterproof Stainless Steel Temperature Probe

The waterproof stainless steel probe is designed for liquid temperature measurement and general industrial monitoring. SS304 construction provides a durable probe housing for water tanks, HVAC systems, equipment, automation systems, and other applications requiring a sealed temperature probe.

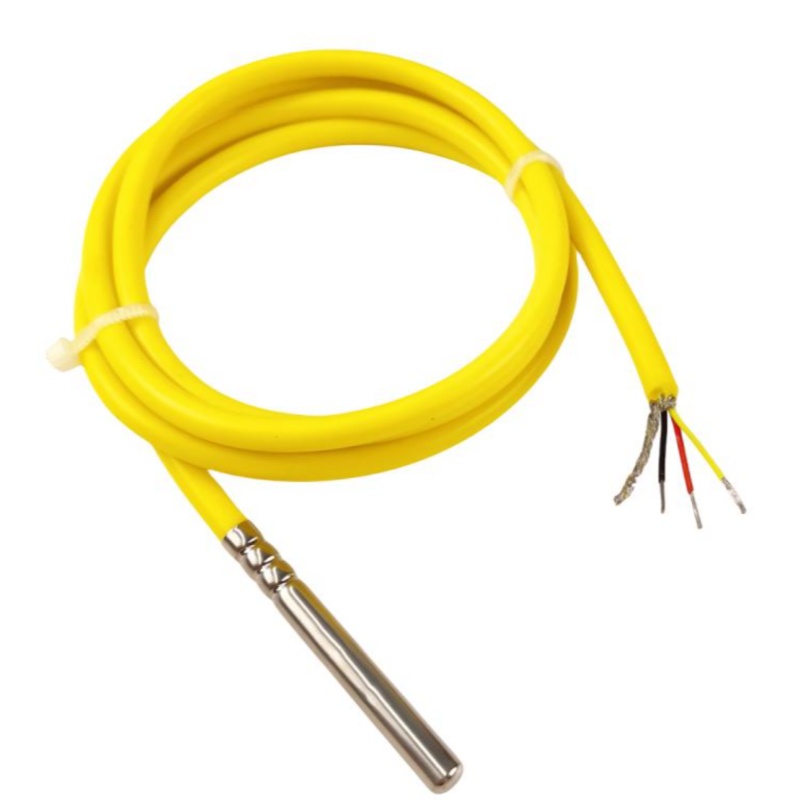

DS18B20 Temperature Probe with Silicone Cable

Silicone cable provides greater flexibility and improved temperature resistance compared with standard PVC cable. It is suitable for equipment where the cable needs to bend or operate in a higher-temperature environment.

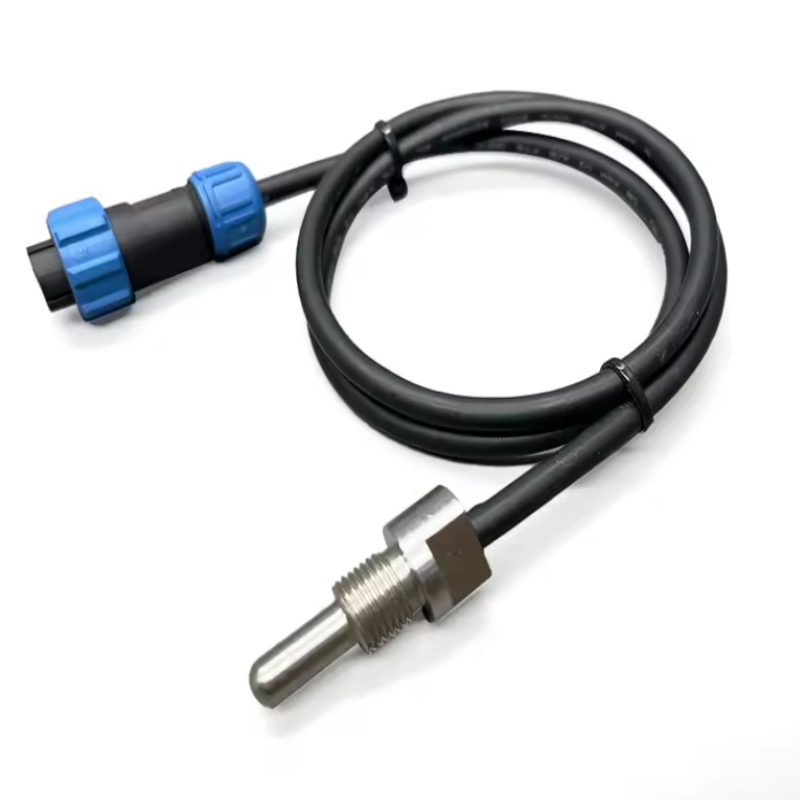

DS18B20 Temperature Sensor with Aviation Connector

An aviation connector provides a secure detachable connection for equipment and control systems. Connector type and cable length can be customized according to installation requirements.

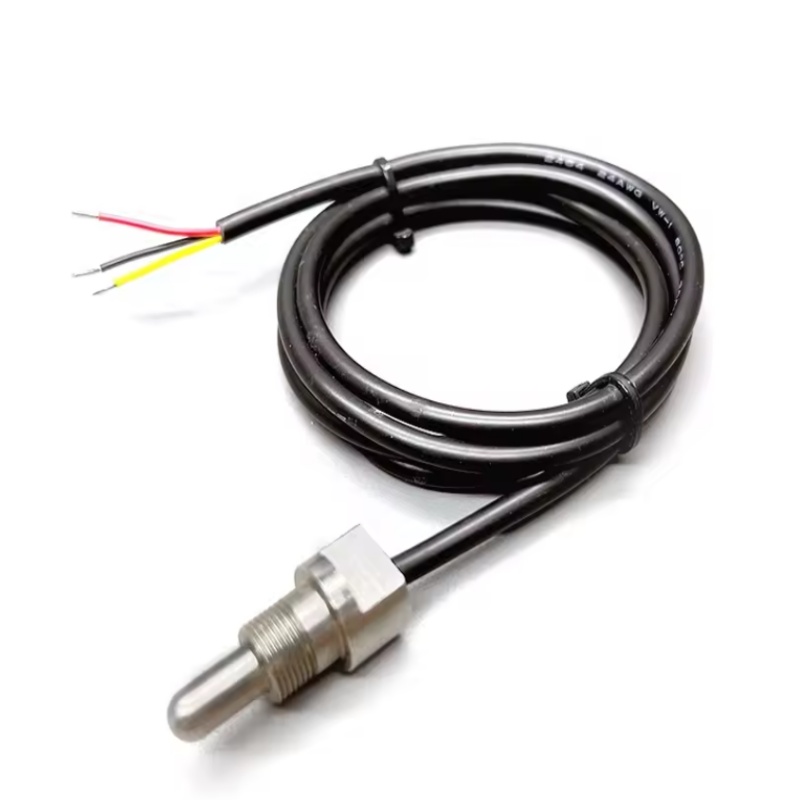

Threaded DS18B20 Temperature Probe

Threaded probes provide secure installation in tanks, pipes, and industrial equipment. Metric and other thread configurations can be customized according to the application and mounting requirements.

Standard DS18B20 Temperature Sensor Options

Configuration	Standard Option
Sensor	DS18B20 digital temperature sensor
Probe Material	SS304 stainless steel
Probe Diameter	4 / 5 / 6 / 8 mm
Probe Type	Straight waterproof probe / threaded probe
Cable	PVC / Silicone / PTFE
Cable Length	Customizable
Communication	1-Wire digital interface
Connector	Bare wire / JST-XH / aviation connector

DS18B20 Temperature Sensor Cable Options

Cable Material	Typical Characteristics	Recommended Applications
PVC	Economical and suitable for general applications	Water tanks, HVAC, and equipment monitoring
Silicone	Flexible and suitable for higher cable-side temperatures	Industrial equipment and flexible installations
PTFE	Good chemical and temperature resistance	Chemical and demanding industrial environments

The cable material and construction should be selected according to the temperature and environmental conditions at the cable installation point.

DS18B20 Temperature Probe Options

• Probe Diameter: 4 / 5 / 6 / 8 mm standard options
• Probe Length: Customizable according to installation requirements
• Probe Material: SS304 standard; SS316 available for custom orders
• Probe Construction: Waterproof stainless steel probe
• Thread: No thread or threaded construction
• Mounting: Straight insertion, threaded, or customized mounting

DS18B20 Connector Options

• Bare Wire: Simple connection to controllers and custom wiring systems.
• JST-XH: Compact connector for electronic assemblies.
• Aviation Connector: Secure detachable connection for industrial equipment.

DS18B20 Temperature Sensor Technical Specifications

Specification	Details
Sensor Type	DS18B20 digital temperature sensor
Communication	1-Wire digital interface
Operating Temperature Range	-55°C to +125°C for the DS18B20 sensor
Temperature Accuracy	±0.5°C from -10°C to +85°C
Probe Material	SS304 standard; SS316 custom
Probe Diameter	4 / 5 / 6 / 8 mm
Probe Length	Customizable
Cable Material	PVC / Silicone / PTFE
Connector	Bare wire / JST-XH / Aviation connector
Probe Construction	Waterproof sealed probe

Temperature range and accuracy refer to the DS18B20 sensing device. The allowable temperature of the complete probe assembly depends on the cable, sealing, connector, and installation environment.

How Does a DS18B20 Temperature Sensor Work?

The DS18B20 temperature sensor measures temperature and converts the measurement into a digital signal. It communicates temperature data to a compatible controller through a 1-Wire interface, allowing multiple devices to share the same communication bus with appropriate system configuration.

This digital output eliminates the need for a separate analog-to-digital conversion stage at the sensor interface and makes the DS18B20 suitable for equipment monitoring, automation, HVAC, water temperature measurement, and IoT temperature monitoring systems.

DS18B20 Temperature Sensor Features

• Digital temperature measurement using a 1-Wire interface
• Waterproof stainless steel probe construction
• SS304 standard with SS316 available for custom orders
• Multiple probe diameters and lengths
• PVC, silicone, and PTFE cable options
• Threaded and straight probe configurations
• Multiple connector options
• Suitable for compatible controllers and monitoring systems
• OEM dimensions, cables, connectors, and packaging available

DS18B20 Temperature Sensor Applications

• Industrial equipment temperature monitoring
• Water tanks and water heating systems
• HVAC and refrigeration equipment
• Boilers and process equipment
• Industrial automation systems
• Environmental monitoring equipment
• IoT temperature monitoring systems
• Laboratory and testing equipment
• 3D printers and electronic equipment
• Smart temperature control systems

For application-specific examples and installation scenarios, see our DS18B20 Temperature Sensor Applications guide.

DS18B20 Temperature Sensor OEM & Customization

EaseWise supports OEM and custom requirements for DS18B20 temperature sensors. We can adjust probe dimensions, cable construction, cable length, connector, and mounting configuration according to your equipment and installation requirements.

• Probe diameter: 4 / 5 / 6 / 8 mm or custom
• Probe length: Standard or custom
• Probe material: SS304 / SS316
• Cable material: PVC / Silicone / PTFE
• Cable length: Custom
• Connector: Bare Wire / JST-XH / Aviation Connector
• Probe construction: Threaded or straight
• Packaging: OEM logo and custom packaging available

Standard stock and OEM quantities are available. Contact us with your required probe size, cable, connector, and mounting configuration for a quotation.

Related Temperature Sensors

If you need an analog resistance-based temperature sensor for industrial temperature measurement and control, see our PT100 / PT1000 RTD Temperature Sensor.

For thermocouple-based temperature measurement, see our Sheathed Thermocouple.

DS18B20 Temperature Sensor Reference

For the manufacturer’s technical specifications and datasheet, see the official Analog Devices DS18B20 product page.

Need a DS18B20 Digital Temperature Probe?

Send us your required probe diameter, probe length, cable material, cable length, connector, and mounting requirements. EaseWise can recommend a suitable DS18B20 temperature sensor configuration for your application.
