Brass Band Heater for Injection Machine Nozzles

SKU: TZ-BH-BR 分类:

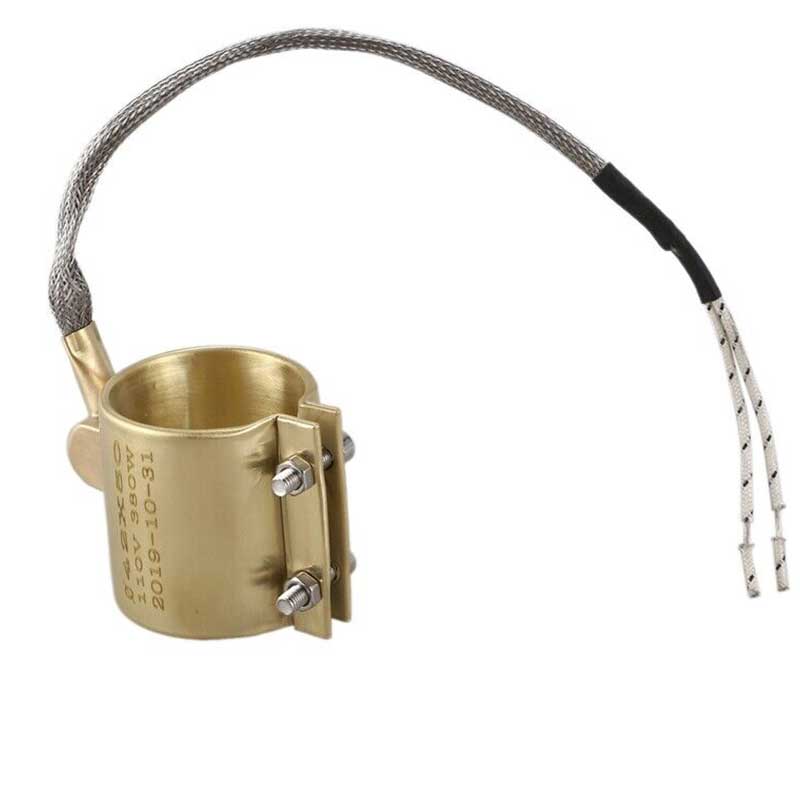

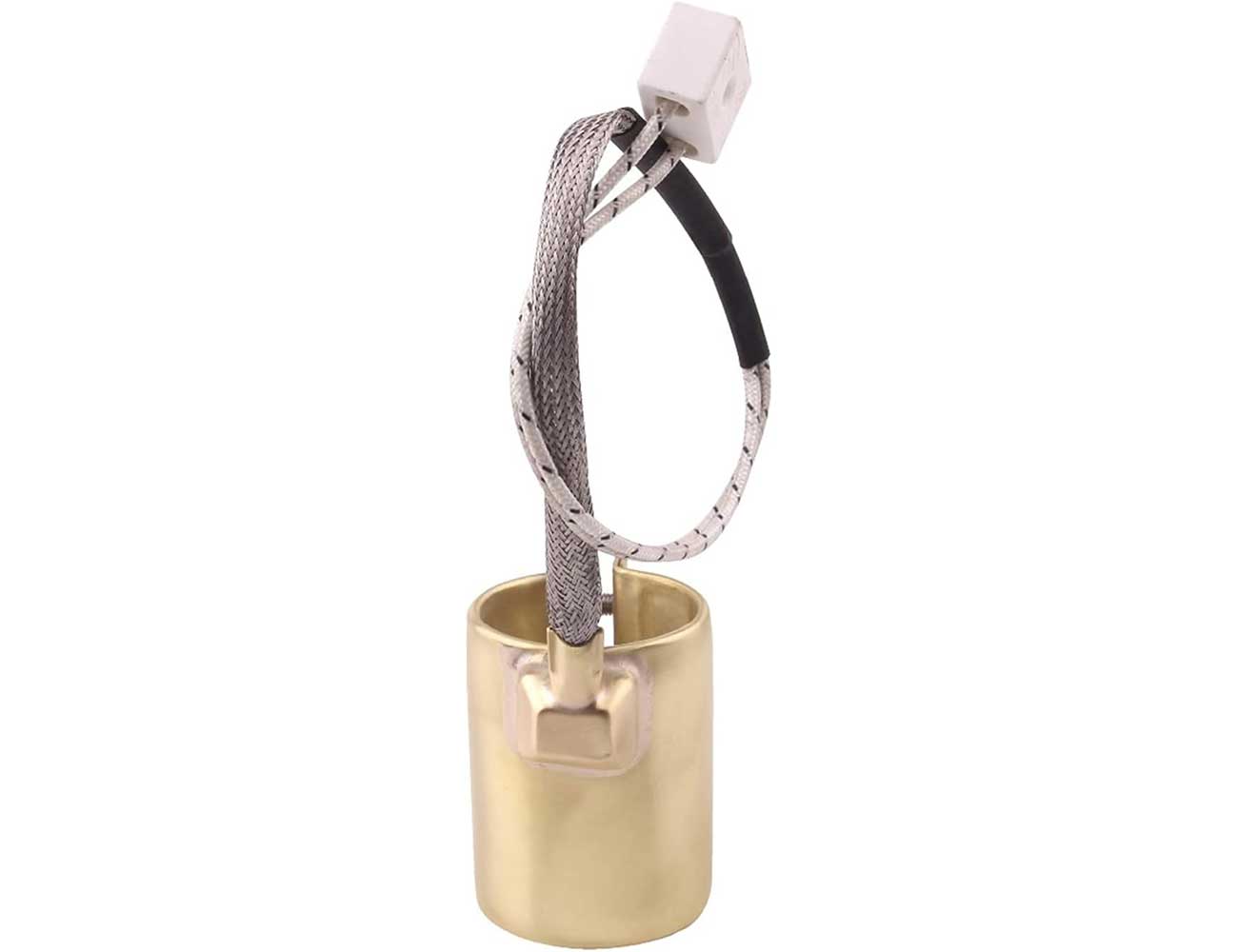

Brass Band Heater for Injection Molding Machine Nozzles

A Brass Band Heater, also known as a Brass Nozzle Band Heater, is designed for injection molding machine nozzles, hot runner bushings, and other compact cylindrical heating zones. Its sealed brass sheath and mica insulation provide efficient heat transfer and stable heating for applications that require precise nozzle temperature control.

EaseWise supplies standard and custom brass band heaters for OEM equipment manufacturers and replacement applications. Inside diameter, heater width, voltage, wattage, terminal configuration, and thermocouple options can be customized according to your equipment requirements.

Explore our complete range of Band Heater Solutions for different industrial heating applications.

Key Features of Brass Band Heaters

  • Efficient Heat Transfer – Sealed brass construction supports effective heat transfer to the nozzle surface.
  • Compact Nozzle Heating – Designed for injection molding machine nozzles, hot runner bushings, and limited installation spaces.
  • Fast Heating Response – Suitable for applications requiring rapid heat-up and stable temperature maintenance.
  • Mica Insulation – High-temperature mica insulation combined with NiCr 80/20 resistance wire.
  • Temperature Monitoring – Optional K-type or J-type thermocouples are available.
  • OEM Customization – Custom dimensions, electrical ratings, terminals, and heating configurations are supported.

Brass Band Heater Technical Specifications

Parameter Specification
Product Type Brass Band Heater / Brass Nozzle Band Heater
SKU TZ-BH-BR
Structure Split sealed brass heater
Outer Material Brass sealed sheath
Insulation High-temperature mica insulation
Heating Wire NiCr 80/20 nickel-chromium alloy
Maximum Temperature 340–350°C
Voltage 110V–480V, customizable
Power Density 2.5–4.0 W/cm²
Thermocouple Optional K-type or J-type
Main Applications Injection molding nozzles, hot runner bushings, and small cylindrical heating zones

Standard Brass Band Heater Sizes

Common reference sizes are available for standard replacement requirements. Custom inside diameters and heater widths can also be supplied according to the nozzle dimensions and heating requirements.

Inside Diameter Heater Width Voltage
25 mm 25 mm 220V
30 mm 30 mm 220V
35 mm 35 mm 220V
40 mm 40 mm 220V
50 mm 40 mm 220V

Stock availability may vary by specification. Contact EaseWise to confirm current availability, electrical ratings, and lead time.

Brass Nozzle Band Heater Applications

Brass nozzle band heaters are mainly used in plastic processing equipment where compact dimensions, efficient heat transfer, and stable temperature control are required.

  • Injection Molding Machine Nozzles – Maintains nozzle temperature to support consistent plastic melt flow during injection molding.
  • Hot Runner Bushings – Provides localized heating for hot runner components.
  • Small-Diameter Barrels – Heats compact cylindrical sections of plastic processing equipment.
  • Plastic Extrusion Equipment – Supports temperature maintenance in selected compact heating zones.

How to Select a Brass Band Heater

Choosing the correct brass band heater requires matching its dimensions and electrical specifications to the actual nozzle or heating zone.

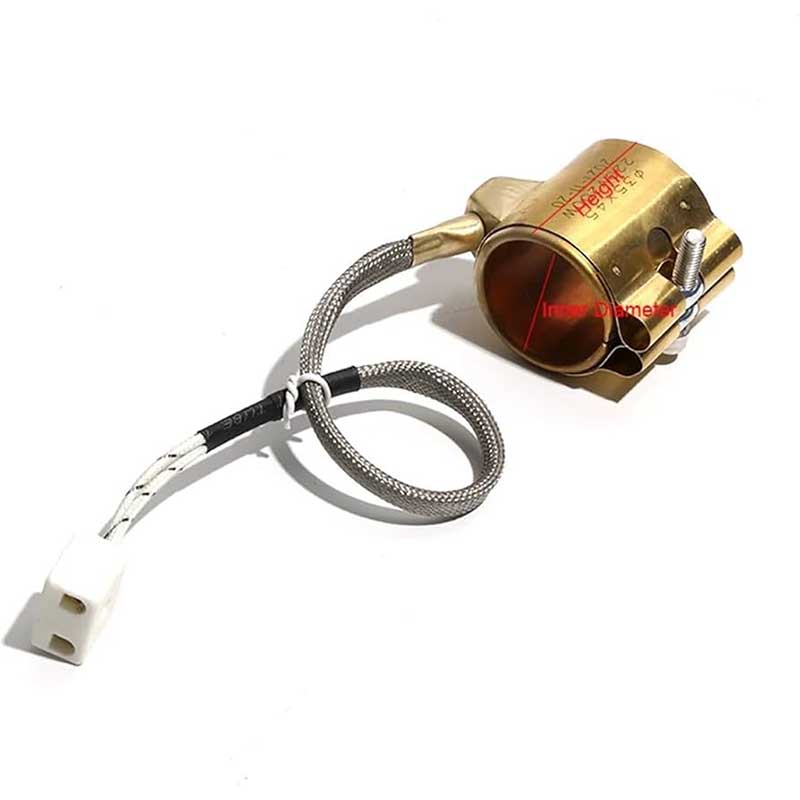

  1. Inside Diameter – Measure the outside diameter of the nozzle or barrel where the heater will be installed.
  2. Heater Width – Select the width according to the required heating area and available installation space.
  3. Voltage and Wattage – Match the electrical ratings to the machine power supply and required heating output.
  4. Operating Temperature – Confirm that the heater’s temperature rating meets the process requirements.
  5. Thermocouple Type – Specify K-type or J-type thermocouple requirements if temperature monitoring is needed.
  6. Terminal Position – Confirm the terminal direction, connection type, and available clearance around the nozzle.

Custom Brass Band Heaters for OEM Applications

EaseWise supports custom brass band heater sourcing and OEM specifications according to technical drawings, samples, or equipment dimensions.

  • Custom inside diameter and heater width
  • Custom voltage and wattage
  • Custom power density
  • Custom terminal and lead configurations
  • Optional K-type or J-type thermocouples
  • Custom heating section dimensions
  • Mounting and connection requirements

For a replacement or OEM project, please provide the nozzle diameter, heater width, voltage, wattage, quantity, terminal requirements, and application details. A technical drawing or photo of the existing heater can also help confirm the required configuration.

Brass Band Heater vs. Mica and Ceramic Band Heaters

Different band heater constructions are designed for different operating conditions. A brass band heater is commonly selected for compact nozzle heating, while mica and ceramic band heaters serve other barrel heating requirements.

  • Brass Band Heater – Suitable for compact injection molding nozzles and hot runner components, with a sealed brass sheath and efficient heat transfer.
  • Mica Band Heater – A practical option for general injection molding machine barrels and plastic extrusion equipment.
  • Ceramic Band Heater – An alternative for applications requiring higher operating temperatures and different insulation structures.

Explore the related products:

Why Source Brass Band Heaters from EaseWise?

Taizhou EaseWise Trading Co., Ltd. supplies industrial heating solutions for OEM and replacement projects. Our team has over 10 years of industry experience and works with qualified manufacturing partners to coordinate product specifications, customization, and supply requirements.

  • Support for standard replacement and custom OEM requirements
  • Specification coordination based on drawings and samples
  • Product sourcing through qualified manufacturing partners
  • Experience supporting customers across multiple international markets

Request a Custom Brass Band Heater

Looking for a brass band heater for an injection molding machine nozzle or hot runner component?

Send your inside diameter, heater width, voltage, wattage, operating temperature, quantity, and application requirements through our Get a Quote page.

EaseWise supports standard replacement sourcing and OEM customized brass nozzle band heater solutions. You can also provide a drawing or photo to help confirm the required dimensions and connections.
