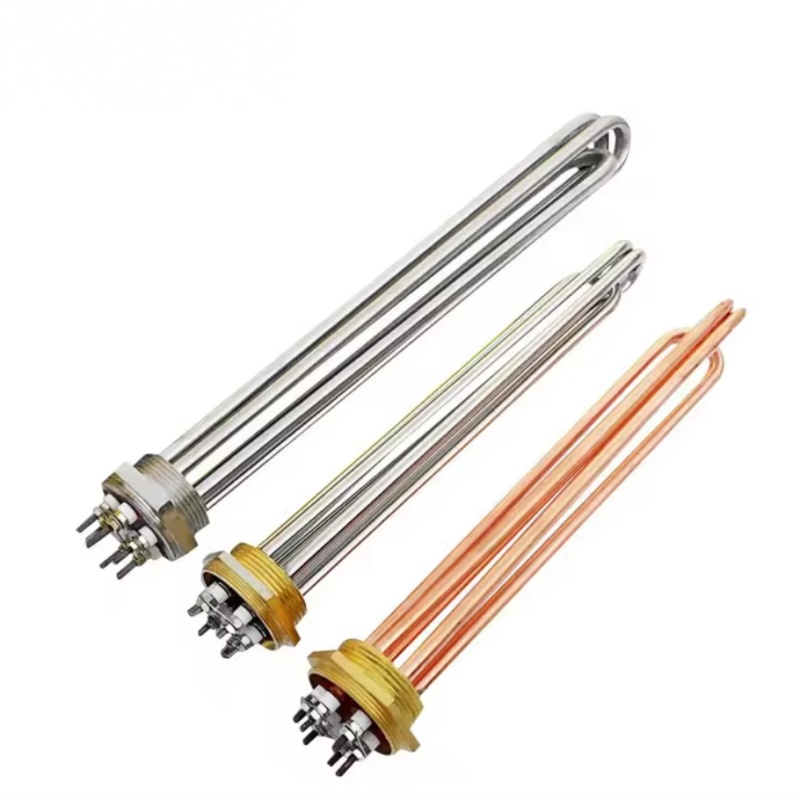

Immersion Heater Materials & Sheath Selection Guide
Choosing the right immersion heater materials is important for heating performance, service life, and corrosion resistance. The heater sheath must match the heating medium, operating temperature, and application conditions.
For water, oil, chemical solutions, food processing, and industrial tanks, different sheath materials may be required. This guide explains the main immersion heater sheath options and how to select the right material.
Why Immersion Heater Materials Matter
The sheath protects the internal heating element from the surrounding medium. If the material is not suitable, corrosion, premature failure, contamination, or reduced heater life can occur.
The main factors to consider are:
- Heating medium and chemical composition
- Operating temperature
- Corrosion resistance requirements
- Required heating power and watt density
- Installation environment
- Food, water, or industrial hygiene requirements
For an overview of immersion heater configurations and liquid-heating applications, see our Immersion Heater product range.
Common Immersion Heater Sheath Materials
| Sheath Material | Typical Applications | Main Advantage |
|---|---|---|
| SUS304 Stainless Steel | Water, tanks, general industrial heating | Good general corrosion resistance and cost balance |
| SUS316 / SUS316L | Chemical solutions, water treatment, demanding environments | Better corrosion resistance than SUS304 |
| Incoloy | High-temperature industrial heating | Good high-temperature performance |
| Titanium | Aggressive chemicals and corrosive liquids | Excellent corrosion resistance |
How to Select Immersion Heater Materials
1. Water Heating
For general water heating, SUS304 stainless steel is often a practical choice. If the water contains higher levels of chloride or other corrosive components, SUS316L may provide better resistance.
2. Oil Heating
Oil heating requires consideration of both sheath temperature and oil characteristics. The heater should be selected according to the oil type, operating temperature, and required watt density.
3. Chemical Heating
Chemical solutions require careful material selection. SUS316L, titanium, or other corrosion-resistant alloys may be suitable depending on the chemical concentration, temperature, and exposure time.
4. Food and Process Heating
For food processing and other applications where cleanliness is important, stainless steel sheaths are commonly considered. The exact material should be selected according to the process medium and applicable hygiene requirements.
For more application-specific information, see our guide to Immersion Heater Applications.
Immersion Heater Sheath Selection: Quick Guide
| Application | Material to Consider |
|---|---|
| General water heating | SUS304 |
| Corrosive water / demanding water treatment | SUS316L |
| Chemical solutions | SUS316L / Titanium / application-specific alloy |
| High-temperature industrial heating | Incoloy or suitable high-temperature alloy |
| Food and process equipment | Stainless steel, depending on medium |
Other Immersion Heater Specifications Matter Too
Material selection is only one part of immersion heater design. Buyers should also confirm:
- Voltage and wattage
- Heater length and diameter
- Number and shape of heating elements
- Watt density
- Mounting thread, flange, or other connection
- Terminal and lead configuration
- Temperature sensor or thermostat requirements
For example, a Screw Plug Immersion Heater can be customized with different thread sizes, immersion lengths, power ratings, and sheath materials for specific liquid-heating applications.
For a basic explanation of immersion heater types and installation methods, you can also read What Is an Immersion Heater?.
Need a Custom Immersion Heater?
EaseWise supplies industrial immersion heaters with different sheath materials, dimensions, power ratings, mounting configurations, and electrical specifications. If you are unsure which material is suitable, send us the heating medium, temperature, voltage, wattage, heater dimensions, and installation requirements.
Contact EaseWise for an immersion heater matched to your application.
