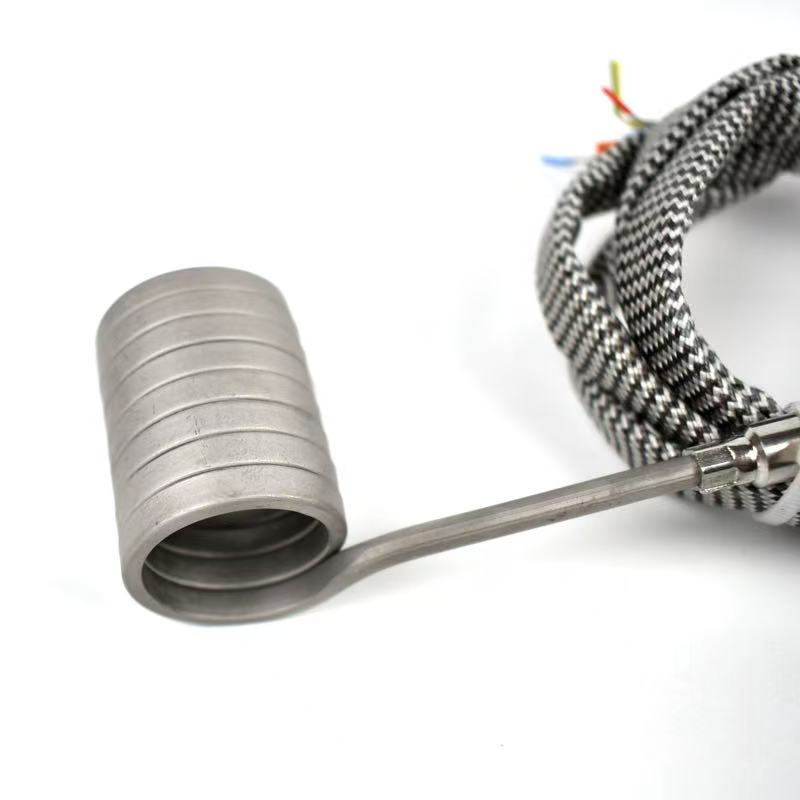

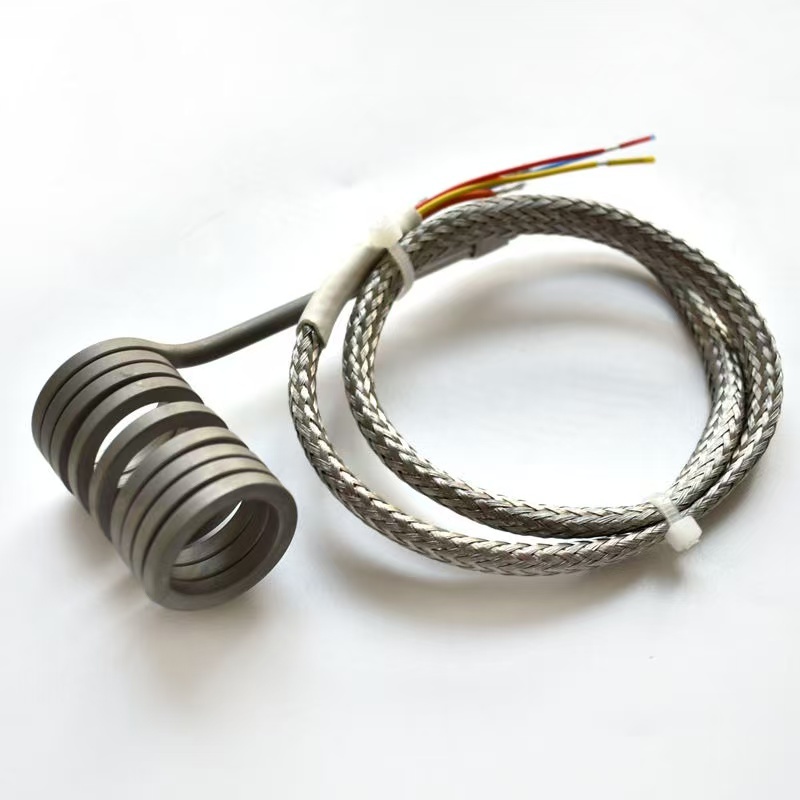

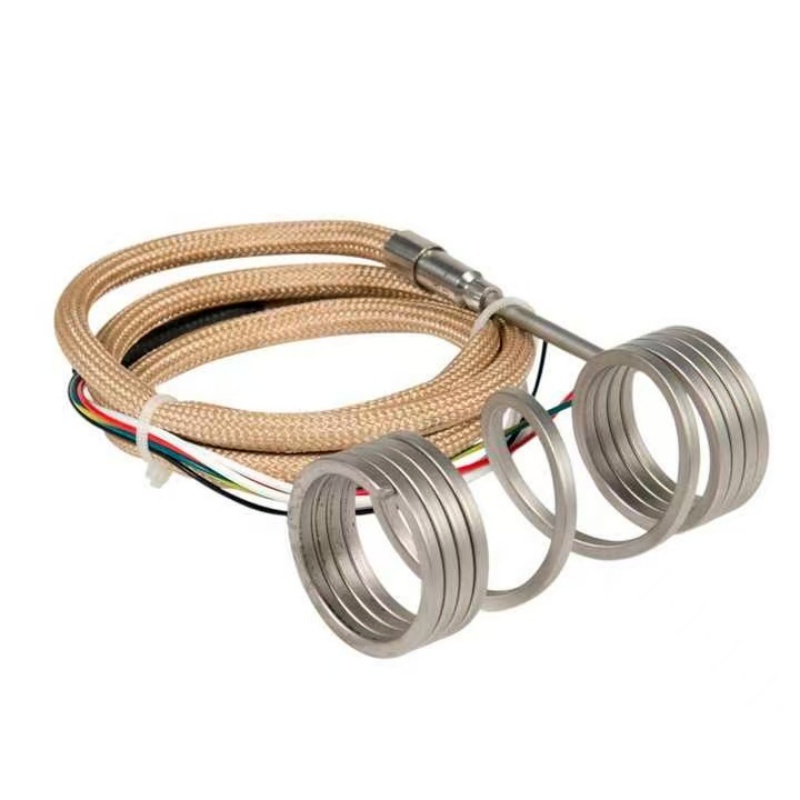

Round Coil Heater for Hot Runner Nozzles & Precision Heating

Round Coil Heater is a flexible cylindrical heating element designed for hot runner nozzles, manifold sleeves, injection molds and other compact industrial heating applications. Its round cross-section provides good flexibility and allows the heater to be formed around suitable cylindrical components during installation.

Available in Φ3.0 mm, Φ4.0 mm and Φ5.0 mm cross-sections, this heater can be customized according to heating length, inner diameter, voltage, wattage and lead-wire requirements.

Round Coil Heater Features

• Round cross-section available in Φ3.0 mm, Φ4.0 mm and Φ5.0 mm
• Flexible construction for suitable cylindrical hot runner components
• Inner diameter tolerance of ±0.20 mm
• Minimum bending radius of ≥12 mm
• Maximum actual working temperature up to 520°C
• Maximum actual watt density up to 7 W/cm²
• Standard 300 mm lead length, customizable
• PTFE high-temperature lead wire with optional stainless steel braided sleeve
• K-type or J-type thermocouple available as an option
• Custom heating length, voltage, wattage and lead configuration available

Product Specifications

Round Coil Heater Applications

This configuration is commonly selected for cylindrical heating components where good flexibility and reliable contact are required.

• Large hot runner nozzles
• Hot runner manifold sleeves
• Plastic injection molding equipment
• Packaging machinery heating components
• Cylindrical heating assemblies
• Industrial equipment requiring flexible coil heating

Why Choose the Round Configuration?

The cylindrical cross-section provides a practical balance between flexibility, heating performance and installation adaptability. Compared with larger square or flat configurations, the round design is suitable for applications where the heating element needs to follow a cylindrical component.

The available Φ3.0 mm, Φ4.0 mm and Φ5.0 mm sizes allow different heating requirements to be matched with the available installation space.

Custom Round Coil Heaters

We manufacture custom heating elements according to customer drawings, samples and application requirements. The heating element can be configured according to the required dimensions and electrical specifications.

• Custom cross-section
• Custom inner diameter
• Custom heating length
• Custom voltage and wattage
• Custom watt density
• Custom lead length
• Radial, tangential or axial lead-out options
• K-type or J-type thermocouple option
• PTFE lead wire or stainless steel braided protection
• OEM production according to drawings or samples

Send us your nozzle diameter, required heating length, voltage, wattage and quantity for a custom quotation.

Coil Heater Series

The Round Coil Heater is the basic flexible configuration in the EaseWise coil heater series. Different structures are available depending on installation space, contact area, flexibility requirements and heating performance.

•
  Square Coil Heater

  – provides a larger contact surface and higher allowable watt density for continuous-production hot runner applications.
•
  Flat Rectangular Coil Heater

  – suitable for narrow installation spaces where efficient heat transfer and compact dimensions are required.
•
  Micro Mini Coil Heater

  – compact heating solution for miniature hot runner nozzles and precision injection molding applications.
•
  Pressed-in Brass Coil Heater

  – rigid close-contact heating assembly designed for precision molds and repeatable thermal performance.
•
  Hot Runner Spring Coil Heater

  – spring-style heating element with brass sleeve construction and thermocouple options for hot runner nozzle heating.
•
  Coil Heater Selection Guide

  – compare different coil heater structures, specifications and typical applications.

Request a Custom Round Coil Heater Quote

Need a flexible heating solution for your hot runner nozzle or cylindrical component?

Send us your required coil diameter, inner diameter, heating length, voltage, wattage and quantity. Our engineering team can recommend a suitable Round Coil Heater configuration and provide a quotation.

Standard and custom round coil heaters are available for hot runner nozzles, injection molding systems and precision industrial heating applications.
