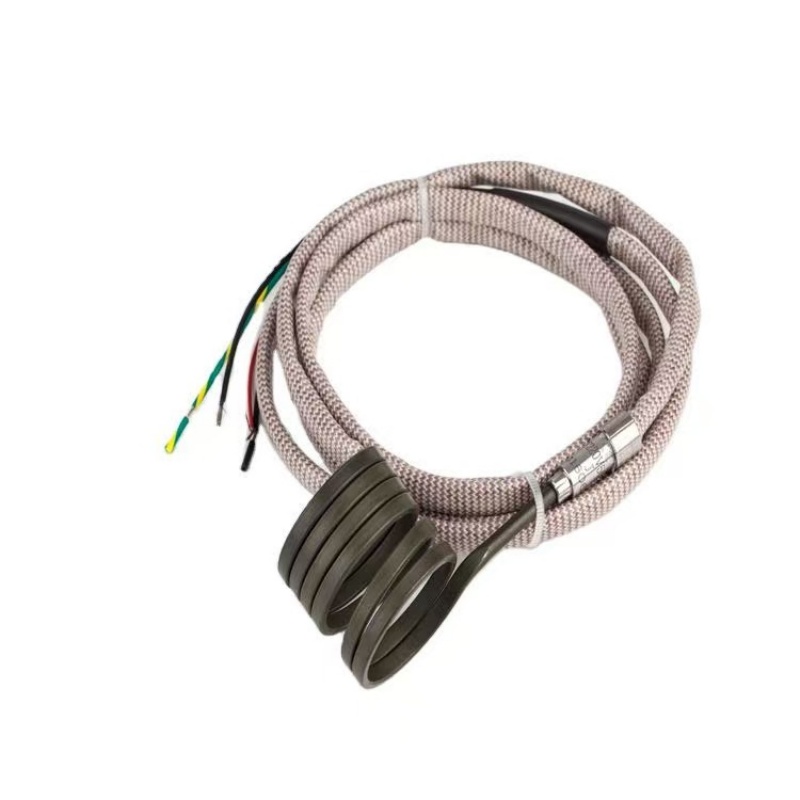

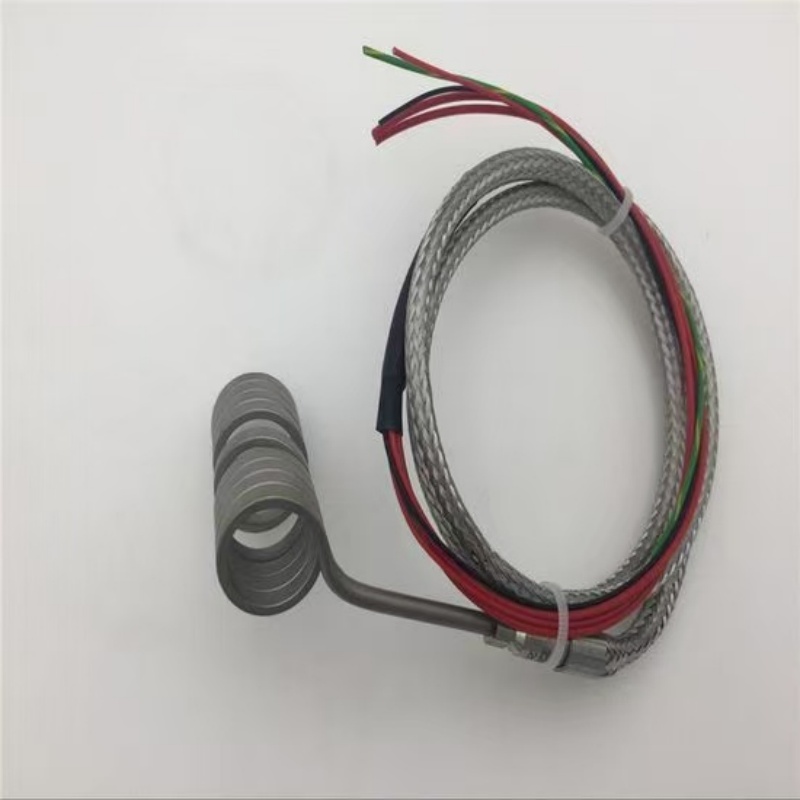

Square Coil Heater for Hot Runner Nozzles & Injection Molding

Square Coil Heater is a precision heating element designed for hot runner nozzles, injection molds, and continuous-production heating applications. Its square cross-section provides a larger contact surface than conventional round coil designs, helping improve heat transfer and maintain stable temperature performance.

Available in 3.0×3.0 mm, 3.3×3.3 mm, 3.5×3.5 mm, and 4.0×4.0 mm cross-sections, this heater can be customized according to heating length, inner diameter, voltage, wattage, and lead-wire requirements.

Square Coil Heater Features

• Square cross-section in 3.0×3.0 mm, 3.3×3.3 mm, 3.5×3.5 mm, and 4.0×4.0 mm
• Larger contact surface for efficient heat transfer
• Suitable for continuous-production hot runner systems
• Inner diameter tolerance of ±0.20 mm
• Minimum bending radius ≥10 mm
• Maximum actual working temperature up to 520°C
• Maximum actual watt density up to 8 W/cm²
• Standard 300 mm lead length, customizable
• PTFE high-temperature lead wire with optional stainless steel braided sleeve
• K-type or J-type thermocouple available as an option
• Custom heating length, voltage, wattage, and lead configuration

Product Specifications

Square Coil Heater Applications

This configuration is suitable for applications requiring stable contact, efficient heat transfer, and consistent thermal performance.

• Medium-size hot runner nozzles
• Continuous-production injection molds
• Packaging machinery nozzle heating
• Plastic injection molding equipment
• Hot runner systems requiring higher watt density
• Industrial heating assemblies with cylindrical installation areas

Coil Heater Series

The square configuration is one of several coil heater designs available from EaseWise. Selection depends on contact area, installation space, flexibility, and heating requirements.

• Round Coil Heater – Flexible cylindrical heating for hot runner nozzles and manifold sleeves.
• Flat Rectangular Coil Heater – Designed for narrow installation gaps and larger contact areas.
• Micro Mini Coil Heater – Compact heating for miniature hot runner systems and limited spaces.
• Pressed-in Brass Coil Heater – Close-contact installation for precision molds.
• Hot Runner Spring Coil Heater – Flexible spring-style heating with brass sleeve and thermocouple options.

Coil Heater Selection Guide

Choosing the right coil heater depends on nozzle size, installation space, required heat transfer, and production requirements.

Coil Heater Series Comparison Guide provides a comparison of different coil heater structures, including round, square, flat rectangular, micro mini, and pressed-in brass designs.

Request a Square Coil Heater Quote

For a standard or custom heating element, send us your required cross-section, inner diameter, heating length, voltage, wattage, and quantity. EaseWise can recommend a suitable configuration based on your application requirements.

Request a Quote for your square coil heater requirements.

Custom square coil heaters are available for hot runner nozzles, injection molding systems, and precision industrial heating applications.
