U Shaped Tubular Heater

U shaped tubular heater is an electric resistance heating element designed for compact and efficient heating in industrial and commercial equipment. The U-shaped configuration provides two parallel heating sections connected by a return bend, making it suitable for applications where installation space is limited or concentrated heating is required.

TZ Heater supplies standard and custom U shaped tubular heating elements for liquid heating, water heating, air heating, ovens, tanks, process equipment, and industrial machinery. Standard models are available with M16 and M18 threaded mounting, while dimensions, voltage, wattage, sheath material, terminals, and other specifications can be customized.

M16 / M18 mounting | 110V–600V AC | 300W–15kW | Multiple tube diameters | Custom specifications available

Request a Quote for a U Shaped Tubular Heater

What Is a U Shaped Tubular Heater?

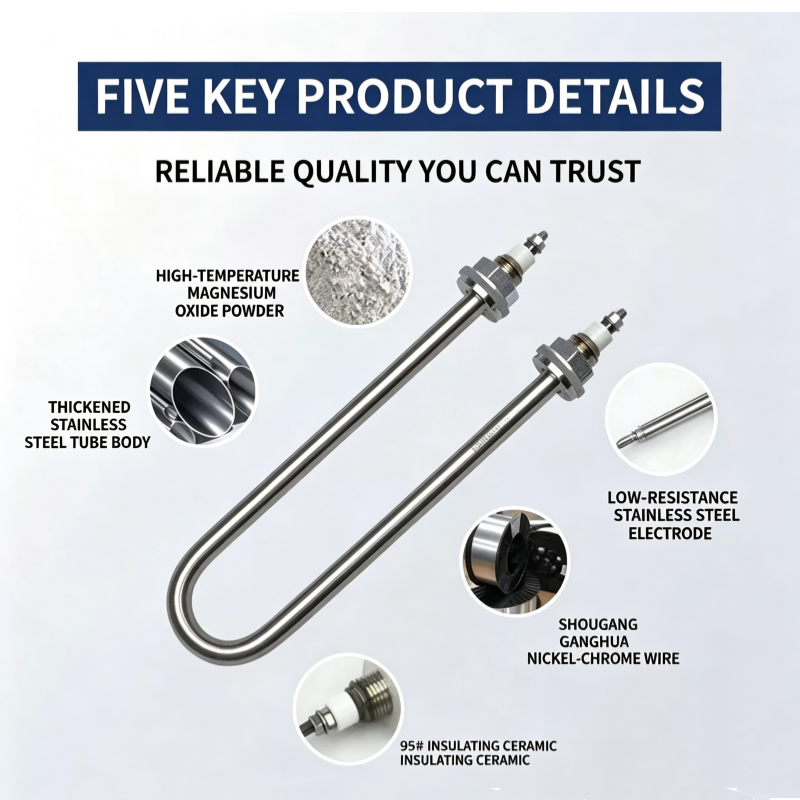

A U shaped tubular heater consists of an internal resistance wire, high-purity magnesium oxide (MgO) insulation, and a metal sheath. When electrical current passes through the resistance wire, electrical energy is converted into heat and transferred through the MgO insulation and metal sheath to the surrounding heating medium or equipment.

The U-shaped design provides two parallel heating sections in one compact element. Depending on the application, sheath materials such as stainless steel, Incoloy, copper, or titanium can be selected.

U Shaped Tubular Heater Specifications

Specification	Available Options
Product Type	U Shaped Tubular Heater / U Type Tubular Heating Element
Mounting	M16, M18, Threaded, Non-Threaded, Flange or Customized
Voltage	110V–600V AC
Wattage	300W–15kW or Customized
Tube Diameter	6.5mm, 8mm, 8.5mm, 9mm, 10mm, 12mm and Customized
Sheath Materials	SUS304, 316L, 321, Incoloy 800, Incoloy 840, Incoloy 600, Copper, Titanium
Insulation	99% High-Purity Magnesium Oxide (MgO)
Resistance Wire	NiCr 8020
Shape	U Shape or Customized
U-Bend Dimensions	Customized
Terminal Configuration	Customized Terminals and Lead Wires
Maximum Operating Temperature	Up to 800°C depending on material and application
Power Tolerance	+5% / -10%
Customization	Available

Available Stock Sizes

TZ Heater offers standard U shaped tubular heaters with M16 and M18 threaded mounting. Common stock configurations include 220V and 380V models with different power ratings and lengths.

M16 Threaded U Shaped Tubular Heater

Thread	Voltage	Power	Length
M16	220V	1kW	200mm
M16	220V	1.5kW	230mm
M16	220V	2kW	250mm
M16	380V	2kW	250mm
M16	220V	3kW	300mm
M16	380V	3kW	300mm
M16	220V	4kW	300mm
M16	380V	4kW	300mm
M16	220V	4kW	350mm
M16	380V	4kW	350mm
M16	380V	6kW	350mm

M18 Threaded U Shaped Tubular Heater

Thread	Voltage	Power	Length
M18	220V	1kW	200mm
M18	220V	1.5kW	230mm
M18	220V	2kW	250mm
M18	220V	3kW	250mm
M18	220V	3kW	300mm
M18	380V	3kW	300mm
M18	220V	4kW	300mm
M18	380V	4kW	300mm
M18	220V	4kW	350mm
M18	380V	4kW	350mm
M18	380V	6kW	350mm
M18	220V	4kW	400mm
M18	380V	4kW	400mm
M18	380V	6kW	400mm
M18	220V	4kW	450mm
M18	380V	4kW	450mm
M18	380V	6kW	450mm
M18	380V	4kW	500mm
M18	220V	4kW	500mm
M18	380V	6kW	500mm
M18	220V	4kW	550mm
M18	380V	4kW	550mm
M18	380V	6kW	550mm
M18	220V	4kW	600mm
M18	380V	4kW	600mm
M18	380V	6kW	600mm
M18	220V	4kW	700mm
M18	380V	6kW	700mm
M18	380V	6kW	800mm
M18	380V	8kW	800mm
M18	380V	6kW	900mm
M18	380V	8kW	900mm
M18	380V	6kW	1000mm

Note: Stock availability may vary. Contact TZ Heater to confirm current availability and specifications before ordering.

U Shaped Tubular Heater Applications

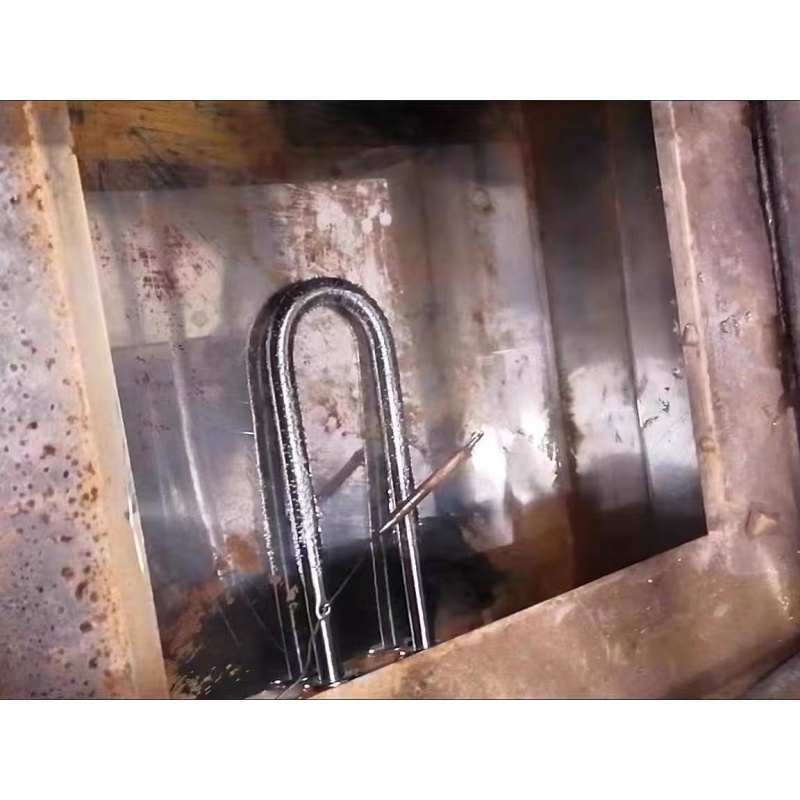

U shaped tubular heaters can be configured for different heating media and equipment. Typical applications include:

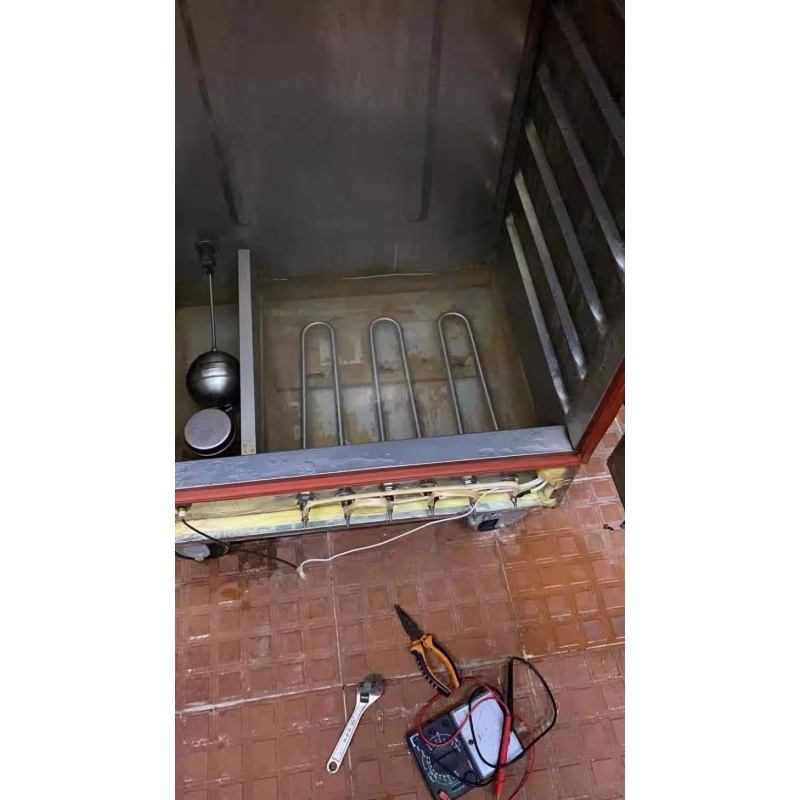

• Water and liquid heating equipment
• Heating tanks and containers
• Air and gas heating systems
• Industrial ovens and drying equipment
• Surface and metal heating
• Industrial process heating
• Industrial machinery
• Commercial heating equipment
• Customized heating systems

For more applications, visit our
Tubular Heater Applications
page.

How to Choose a U Shaped Tubular Heater

The correct heating element depends on the heating medium, required power, available installation space, voltage, operating temperature, sheath material, and mounting requirements.

• Heating medium: Determine whether the heater will heat water, liquid, air, gas, a metal surface, or another process medium.
• Dimensions: Confirm tube diameter, heated length, overall length, leg spacing, and U-bend dimensions.
• Voltage and wattage: Match the heater to the available power supply and required heating capacity.
• Sheath material: Select the material according to temperature, corrosion conditions, and heating medium.
• Mounting: Confirm M16, M18, flange, threaded, or other installation requirements.

Custom U Shaped Tubular Heater

When a standard model does not match your equipment, TZ Heater can manufacture custom U shaped tubular heaters according to drawings, samples, dimensions, or application requirements.

• Tube diameter and heated length
• Overall length and U-bend dimensions
• Voltage and wattage
• Sheath material
• Thread size and mounting method
• Terminal and lead wire configuration
• Special installation dimensions

This makes the heater suitable for both replacement projects and new OEM equipment designs.

Why Choose TZ Heater?

• Standard M16 and M18 threaded models
• Multiple tube diameters and sheath materials
• 110V–600V AC voltage options
• 300W–15kW or customized wattage
• Standard stock sizes for common applications
• Custom U-bend and installation dimensions
• OEM and replacement heating element support
• Technical assistance for product selection

Related Tubular Heater Products

Choose another tubular heating configuration according to your installation space and heating requirements:

•
  Straight Tubular Heater

  – Linear heating elements for ovens, ducts, drying equipment, and industrial machinery.
•
  Finned Tubular Heater

  – Finned heating elements designed to improve heat transfer for air and gas heating.
•
  Tubular Heater

  – Explore the complete tubular heating element range and configurations.

Frequently Asked Questions

What is a U shaped tubular heater?

A U shaped tubular heater is an electric resistance heating element formed into a U-shaped configuration with two parallel heating sections connected by a return bend.

What thread sizes are available?

Standard stock models are available with M16 and M18 threaded mounting. Other mounting configurations can be customized.

What voltage and wattage are available?

Available voltage ranges from 110V to 600V AC, with power from 300W to 15kW or customized according to the application.

Can U shaped tubular heaters be used for water heating?

Yes. They can be designed for water and liquid heating applications. Sheath material, watt density, mounting, voltage, and power should be selected according to the liquid and operating conditions.

Can the dimensions be customized?

Yes. Tube diameter, heated length, U-bend dimensions, voltage, wattage, sheath material, mounting, terminals, and other installation dimensions can be customized.

How do I order a custom U shaped tubular heater?

Send us your required dimensions, voltage, wattage, heating medium, sheath material, quantity, drawing, sample, or application details. Our team can evaluate the requirements and recommend a suitable configuration.
