Straight Tubular Heater

Straight Tubular Heater is a straight electric heating element designed for industrial and commercial heating applications, including ovens, drying equipment, air heating systems, heating ducts, machinery and process equipment. TZ Heater supplies standard stock models and custom straight tubular heaters with different lengths, power ratings, voltage and terminal configurations.

Our standard stock model features a 16mm stainless steel tube, 220V voltage and power ratings from 500W to 2000W. Custom specifications are available for OEM and replacement applications.

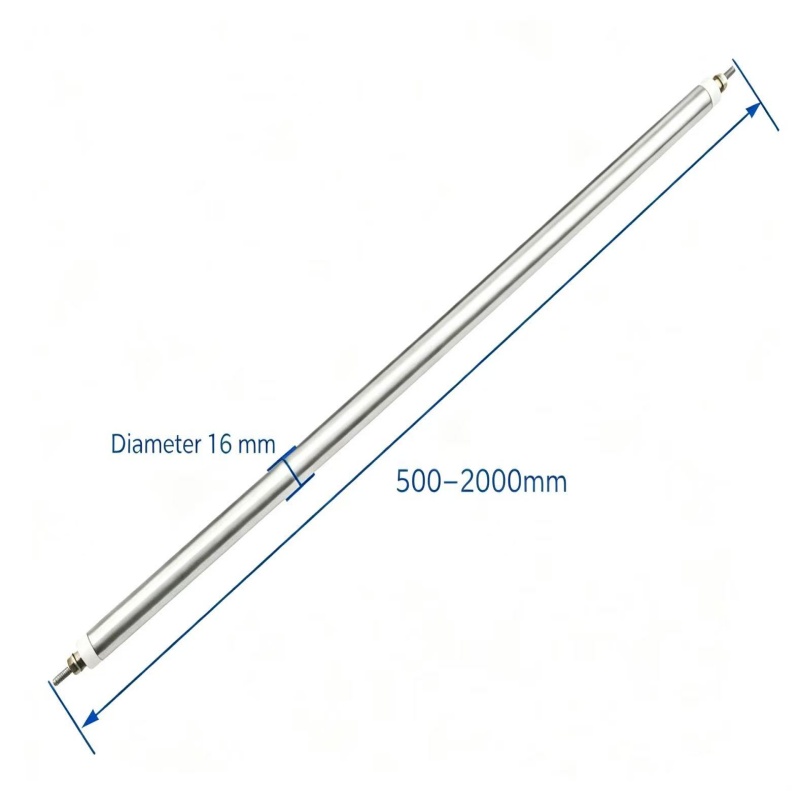

Ø16mm stainless steel tube | 220V | 500W–2000W | 500–2000mm stock lengths | Custom specifications available

Request a Quote for a Straight Tubular Heater

What Is a Straight Tubular Heater?

A straight tubular heater is an electric heating element formed into a straight tubular configuration. It transfers heat to air, equipment, surfaces or other materials depending on the application.

TZ Heater’s straight tubular heaters use stainless steel outer tubes and are available in different lengths and power ratings. The straight configuration makes them suitable for ovens, heating ducts, drying equipment, machinery and other industrial heating systems.

For the complete range of tubular heating element configurations, see our Tubular Heater main product page.

Straight Tubular Heater Specifications

Product Type	Straight Tubular Heater

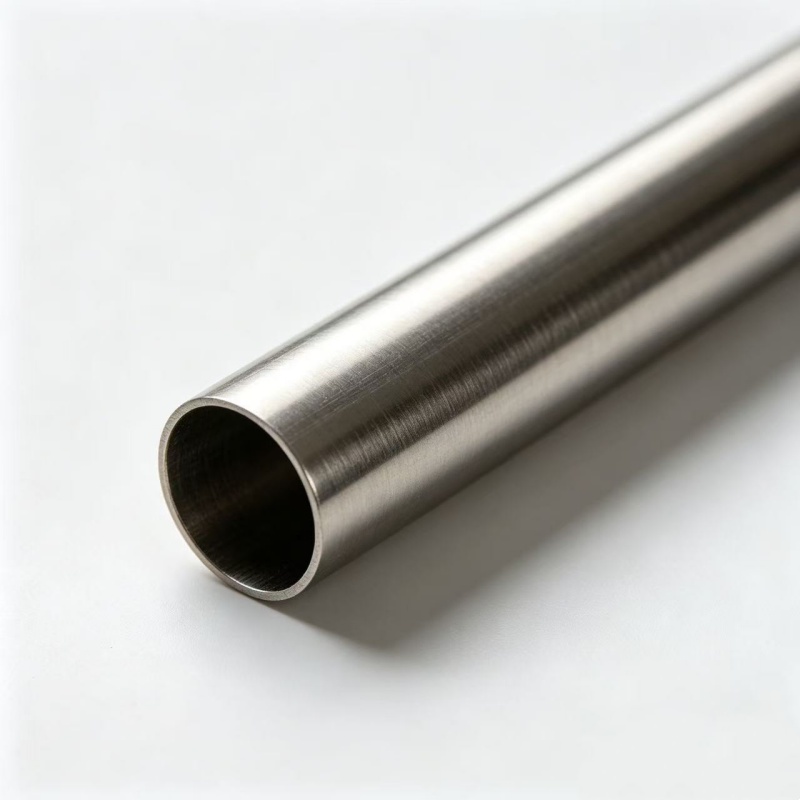

Tube Diameter	16mm
Tube Material	Stainless Steel
Tube Surface	Smooth Tube
Shape	Straight
Standard Voltage	220V
Standard Power	500W–2000W
Stock Length	500mm–2000mm
Custom Specifications	Available

Straight Tubular Heater Stock Sizes

The following 16mm stainless steel straight tubular heater configurations are available as standard stock sizes:

Length	Diameter	Voltage	Power	Availability
500mm	Ø16mm	220V	500W	In Stock
600mm	Ø16mm	220V	600W	In Stock
700mm	Ø16mm	220V	700W	In Stock
800mm	Ø16mm	220V	800W	In Stock
900mm	Ø16mm	220V	900W	In Stock
1000mm	Ø16mm	220V	1000W	In Stock
1200mm	Ø16mm	220V	1200W	In Stock
1500mm	Ø16mm	220V	1500W	In Stock
2000mm	Ø16mm	220V	2000W	In Stock

Custom Straight Tubular Heater

In addition to standard stock sizes, TZ Heater provides custom straight tubular heater solutions for different equipment and heating requirements.

Custom options can include length, voltage, wattage, terminal configuration, tube material and other design requirements. For non-standard applications, customers can provide drawings, dimensions, samples or application requirements.

Contact TZ Heater for a Custom Straight Tubular Heater

Straight Tubular Heater Applications

Straight tubular heaters are widely used as electric heating elements in industrial and commercial heating equipment.

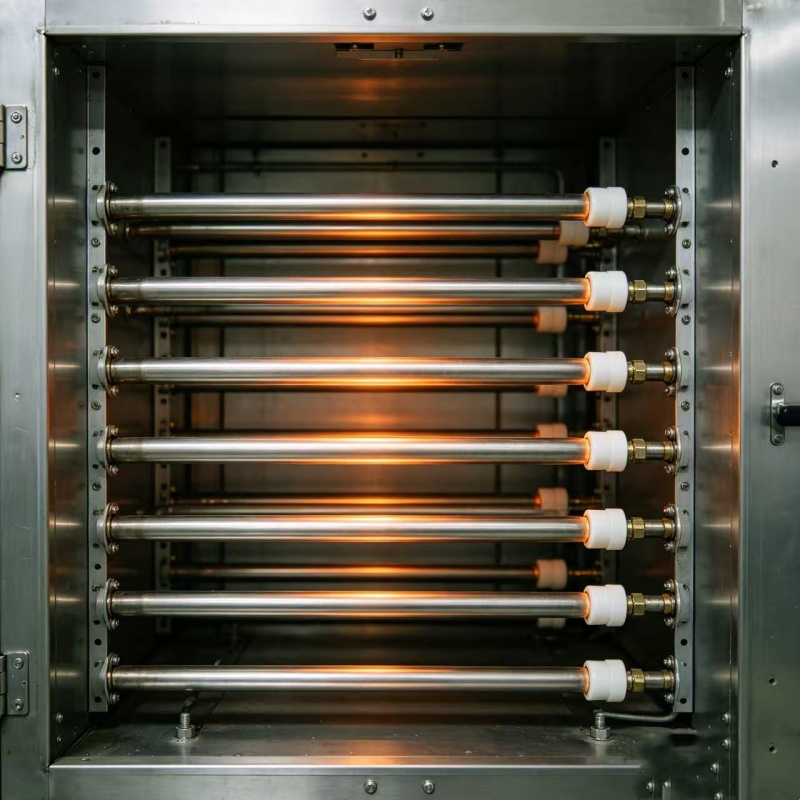

• Industrial ovens
• Drying ovens and drying equipment
• Air heating systems
• Heating ducts
• Industrial process heating
• Cabinet and enclosure heating
• Hot air circulation systems
• Heating tanks and process equipment
• Packaging and processing machinery
• Custom industrial heating systems

Learn more about different heating applications on our Tubular Heater Applications page.

Key Features of Straight Tubular Heaters

• 16mm standard diameter: Suitable for a wide range of industrial heating applications.
• Stainless steel construction: Provides a durable outer tube for industrial use.
• Multiple stock sizes: Standard lengths from 500mm to 2000mm are available.
• Multiple power options: Standard 220V configurations are available from 500W to 2000W.
• Custom manufacturing: Custom dimensions and electrical specifications are available.
• Wide applications: Suitable for ovens, dryers, air heating systems, ducts, tanks and machinery.

How to Choose a Straight Tubular Heater

When selecting a straight tubular heater, consider the required length, tube diameter, voltage, wattage, installation space, terminal configuration and operating environment.

For standard requirements, the 16mm stainless steel 220V models listed above are available in multiple stock lengths. For special applications, TZ Heater can manufacture customized heating elements according to the required specifications.

Straight Tubular Heater FAQ

What diameter is this straight tubular heater?

The standard stock model described on this page has a 16mm tube diameter.

What voltage is available?

The standard stock configurations listed on this page are designed for 220V. Other voltage specifications may be available for custom orders.

What lengths are available in stock?

Standard stock lengths include 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1200mm, 1500mm and 2000mm.

What power ratings are available?

The standard stock configurations range from 500W to 2000W, with the listed stock lengths matched to their corresponding standard power ratings.

Can you manufacture custom tubular heaters?

Yes. TZ Heater can provide custom straight tubular heater solutions based on required dimensions, electrical specifications, terminal configuration and application requirements.

What are straight tubular heaters used for?

Straight tubular heaters are commonly used in industrial ovens, drying equipment, air heating systems, heating ducts, process equipment, tanks and other electric heating applications.

Related Tubular Heater Products

Explore other tubular heating element configurations for different industrial heating requirements:

• Tubular Heater
  – Main tubular heating element product page covering different configurations and custom heating solutions.
• U Shaped Tubular Heater
  – U-shaped tubular heating elements for industrial equipment and extended heating coverage.
• Finned Tubular Heater
  – Finned heating elements designed primarily for air and gas heating applications.
• Tubular Heater Applications
  – Application information for tubular heating elements used in industrial and commercial equipment.

Request a Quote for a Straight Tubular Heater

Need a different length, voltage or wattage? Contact TZ Heater with your required specifications and application details. Our sales team can help confirm a suitable straight tubular heater configuration for your project.

Standard stock sizes are available, and custom specifications are welcome.
