Mica Band Heater for Injection Molding Machines and Extruders
Mica band heaters are electric heating elements designed for injection molding machine barrels, plastic extruders, and other cylindrical industrial equipment. They use high-temperature mica insulation, nickel-chromium resistance wire, and a stainless steel outer sheath to provide reliable surface heating and stable heat transfer.
EaseWise supplies different mica band heater designs for barrel and nozzle heating applications, including standard split, one-piece, and compact nozzle configurations. Custom inside diameters, heater widths, voltage, wattage, terminals, and thermocouple openings are available according to equipment requirements.
Explore our complete Band Heater Solutions for mica, ceramic, brass, and other industrial band heating options.

Available Mica Band Heater Designs
Different mica band heater structures are available to match barrel dimensions, installation conditions, and heating requirements. Choose the appropriate design according to the available installation space and equipment configuration.
| Design | Structure and Features | Typical Application |
|---|---|---|
| Standard Split | Open-end split structure for easier installation, removal, and replacement. | Injection molding machine barrels and extrusion barrels. |
| One-Piece | Closed-loop structure designed for close contact with the barrel surface. | Small-diameter barrels and compact heating areas. |
| Nozzle Type | Compact construction for restricted installation spaces. | Injection molding machine nozzle heating. |
View the individual configurations:

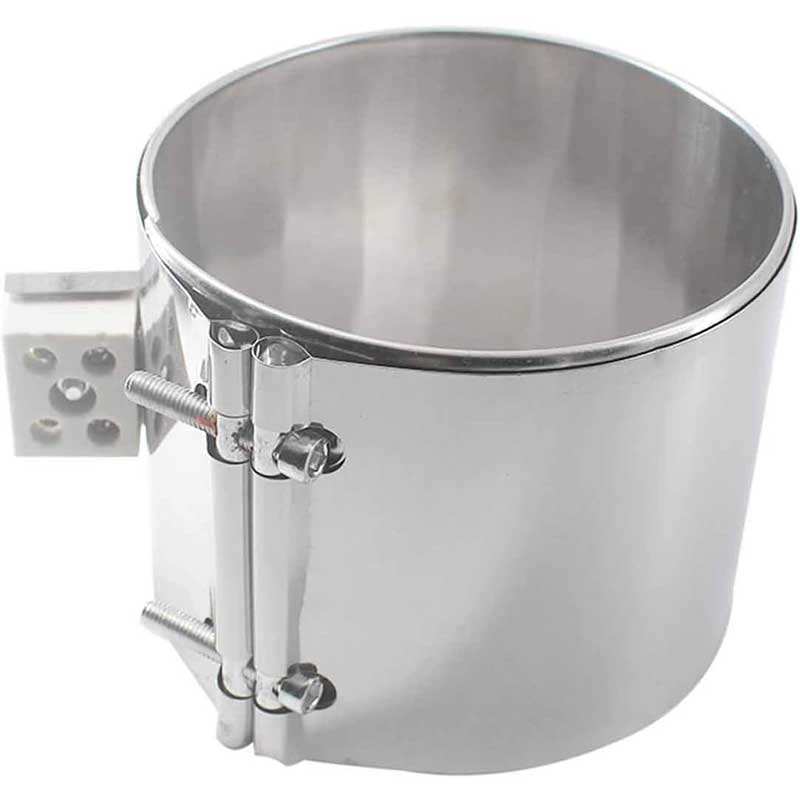

- Standard Split Mica Band Heater – For general barrel heating and easier replacement.
- One-Piece Mica Band Heater – For closed-loop installation on suitable small-diameter barrels.

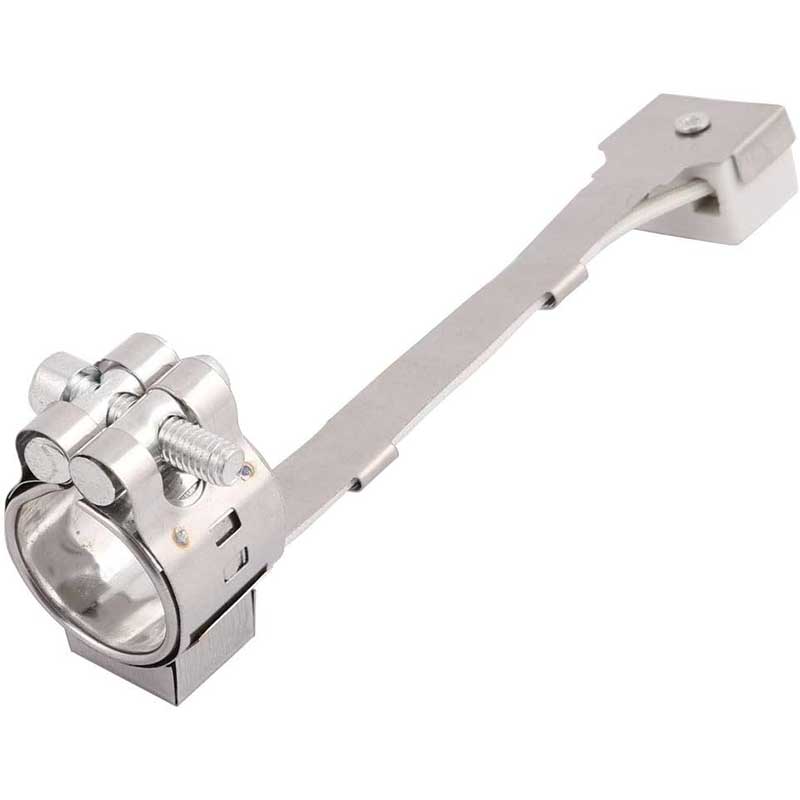

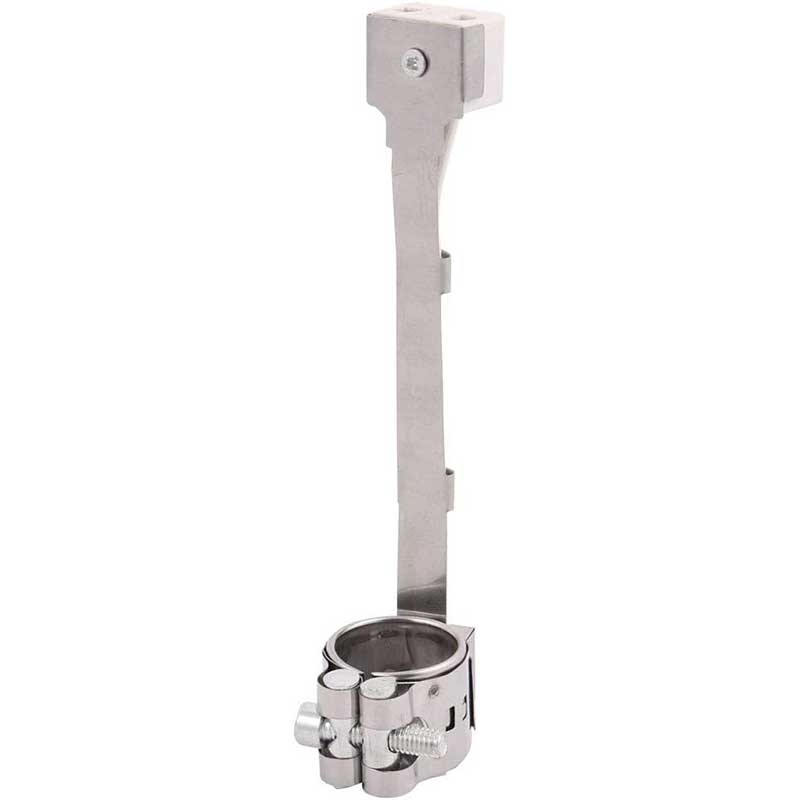

- Nozzle Mica Band Heater – For compact injection molding nozzle heating.
Key Features of Mica Band Heaters
- Mica Insulation – High-temperature mica sheet provides electrical insulation for the resistance heating element.
- Stainless Steel Outer Sheath – Stainless Steel 304 construction for industrial heating applications.
- Nickel-Chromium Heating Wire – Resistance wire designed for reliable electric heating.
- Multiple Heater Structures – Split, one-piece, and nozzle configurations for different installation conditions.
- Flexible Electrical Options – Custom voltage, wattage, and terminal configurations.

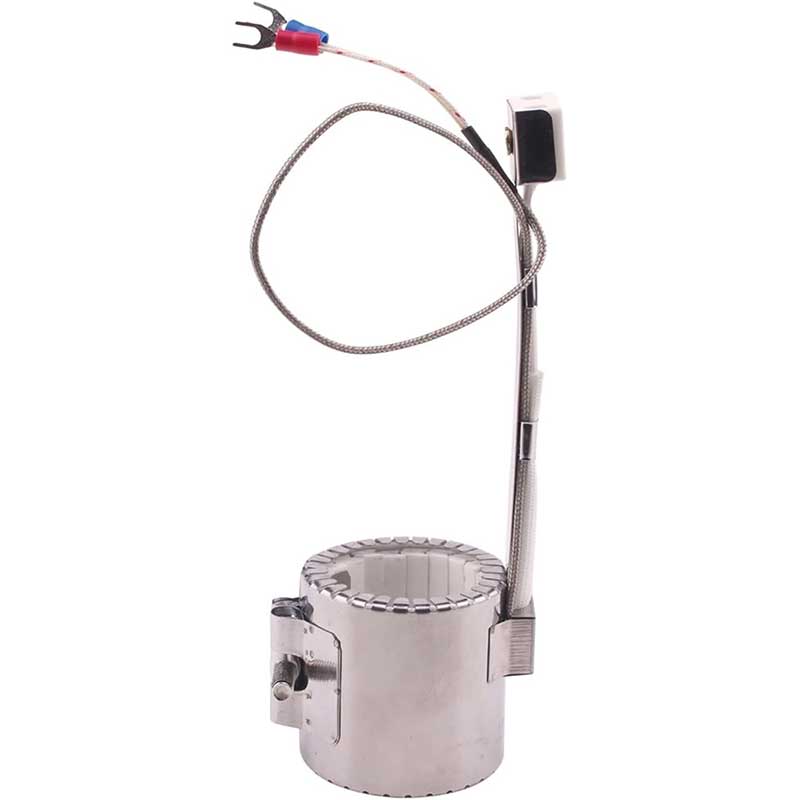

- Thermocouple Provision – Thermocouple holes can be provided on request.
Mica Band Heater Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Mica Band Heater |
| Insulation Material | High-temperature mica sheet |
| Outer Sheath | Stainless Steel 304 |
| Heating Element | Nickel-chromium resistance wire |
| Voltage | 110V–480V, customizable |
| Maximum Temperature | Up to 450°C, depending on design |
| Terminal Options | Screw terminal / Braided lead / Terminal box |
| Thermocouple Hole | Available on request |
| Custom Options | Inside diameter, width, voltage, power, terminals, and heater structure |
Standard Mica Band Heater Stock Sizes
Common reference sizes are available for standard applications. Custom dimensions and electrical ratings can be supplied according to barrel diameter, heating width, voltage, and power requirements.
| Inside Diameter | Heater Width | Voltage | Power |
|---|---|---|---|
| 25 mm | 25 mm | 220V | Custom |
| 30 mm | 30 mm | 220V | Custom |
| 40 mm | 40 mm | 220V | Custom |
| 50 mm | 40 mm | 220V | Custom |
Other sizes, higher power requirements, special terminals, and thermocouple configurations are available for OEM projects. Please confirm current stock availability before ordering.
Applications of Mica Band Heaters
Mica band heaters are commonly used for external heating of cylindrical components in plastic processing machinery and other industrial equipment.
- Injection Molding Machines – Heats machine barrels to maintain the required plastic processing temperature.
- Plastic Extruders – Provides external heating for extrusion barrel sections.
- Injection Machine Nozzles – Supplies localized heating for selected nozzle configurations.
- Small Cylindrical Equipment – Suitable for compact cylindrical heating zones.
- Industrial Processing Equipment – Used where external surface heating is required.
How to Select the Right Mica Band Heater
Selecting the correct heater depends on the equipment dimensions, installation method, operating temperature, and electrical requirements.
- Inside Diameter – Measure the outside diameter of the barrel or cylindrical surface where the heater will be installed.
- Heater Width – Select the width according to the required heating area and available installation space.
- Heater Structure – Choose split, one-piece, or nozzle construction according to the installation method.
- Voltage and Power – Match the electrical ratings to the machine power supply and required heating output.
- Terminal Configuration – Confirm the connection type, lead direction, and available clearance.
- Thermocouple Position – Specify any required thermocouple hole or temperature monitoring arrangement.
Mica Band Heater vs. Ceramic and Brass Band Heaters
Different band heater types are designed for different temperature requirements, heating structures, and equipment applications.
- Mica Band Heater – A practical option for general injection molding barrel and plastic extrusion heating.
- Ceramic Band Heater – An alternative for applications requiring different insulation construction and higher-temperature operation. See our Ceramic Band Heater.
- Brass Band Heater – Designed for compact nozzle and hot runner heating applications where efficient heat transfer is important. See our Brass Band Heater.
For a more detailed comparison, read our Mica Band Heater vs. Ceramic Band Heater guide.
OEM Custom Mica Band Heater Solutions
EaseWise supports custom mica band heater sourcing and OEM specifications according to equipment dimensions, technical drawings, and electrical requirements.
Customization options include:
- Custom inside diameter and heater width
- Custom voltage and wattage
- Split or one-piece construction
- Custom terminal and lead configurations
- Thermocouple holes and positioning
- Special dimensions and heating requirements
For an accurate quotation, please provide:
- Inside diameter
- Heating width
- Voltage
- Power (wattage)
- Quantity
- Terminal type and position
- Application and operating temperature
A technical drawing, specification sheet, or photo of the existing heater can also help confirm the required configuration.
Why Source Mica Band Heaters from EaseWise?
Taizhou EaseWise Trading Co., Ltd. supplies industrial heating solutions for OEM and replacement projects. Our team has over 10 years of industry experience and works with qualified manufacturing partners to coordinate product specifications, customization, and supply requirements.
- Support for standard replacement and custom OEM requirements
- Specification coordination based on drawings and samples
- Product sourcing through qualified manufacturing partners
- Experience supporting customers across international markets
Request a Mica Band Heater Quote
Looking for a mica band heater for an injection molding machine, plastic extruder, or other cylindrical heating application?
Send your inside diameter, heater width, voltage, wattage, quantity, terminal requirements, and application details through our Get a Quote page.
EaseWise supports standard replacement sourcing and customized mica band heater solutions for OEM projects.
