Industrial Drum Heater for Oil & Barrel Heating
Industrial Drum Heater is a flexible heating solution designed to heat and maintain the temperature of liquids, oils, greases and other viscous materials stored in metal or plastic drums. The heater wraps around the outside of the drum and transfers heat through the drum wall, helping reduce viscosity and improve material flow during pumping, dispensing, pouring and processing.
Our silicone drum heating solutions are available for common 20L and 200L drums, with standard 110V or 220V AC configurations. Custom sizes, power ratings, temperature controls and installation methods are also available for industrial and OEM applications.
Want to learn more about drum heating? Read our guide What Is an Oil Drum Heater? to understand how flexible drum heaters work and where they are commonly used.
Industrial Drum Heater Features
- Uniform drum heating: Flexible heating elements provide even heat distribution around the drum surface.
- Flexible construction: Silicone heating blankets conform closely to cylindrical drum surfaces.
- Temperature control: Mechanical knob and digital temperature controller options are available.
- Fast installation: Spring clips, straps or Velcro fastening systems allow quick installation and removal.
- Reusable design: The heating blanket can be removed and reused on compatible drums.
- Oil-resistant silicone: The outer silicone construction is suitable for demanding industrial environments.
- Custom configurations: Drum size, heater dimensions, voltage, wattage, temperature range and lead configuration can be customized.
Industrial Drum Heater Specifications
| Item | 20L / 5-Gallon Drum | 200L / 55-Gallon Drum |
|---|---|---|
| Stock Heater Size | 860 × 200 mm | 1740 × 125 mm / 1740 × 250 mm |
| Rated Voltage | 110V / 220V AC | 110V / 220V AC |
| Power | 800W | 1000W / 2000W / 3000W |
| Knob Controller Range | 30–150°C | 30–150°C |
| Digital Controller Range | 0–180°C | 0–180°C |
| Temperature Accuracy | ±5°C knob / ±1°C digital | ±5°C knob / ±1°C digital |
| Maximum Operating Temperature | 200°C | 200°C |
| Protection Grade | IP40 | IP40 |
| Heating Material | Oil-resistant silicone heating blanket | Oil-resistant silicone heating blanket |
Note: Actual heating performance depends on drum material, ambient temperature, material viscosity, required temperature and heat loss conditions.
How Does an Industrial Drum Heater Work?
An Industrial Drum Heater heats the external surface of a drum using a flexible silicone heating element. When electrical power is supplied, the heating element generates heat and transfers it through the drum wall to the material inside.
This indirect heating method is useful for materials that become more viscous at lower temperatures. Increasing the material temperature can reduce viscosity and improve flow during pumping, dispensing, pouring or processing.
The heater should be installed with close contact against the drum surface to improve heat transfer and maintain consistent heating performance.
What Materials Can a Drum Heater Heat?
Drum heaters are commonly used for materials that require controlled heating or viscosity reduction during storage, handling or processing.
- Industrial oils and lubricants
- Grease
- Resins
- Adhesives and glue
- Wax
- Paints and coatings
- Asphalt and bitumen-related materials
- Chemical materials
- Food processing materials such as oils and syrups
- Other viscous liquids and semi-solid materials
Industrial Drum Heater Applications
External drum heating is useful when the material inside a container needs to remain at a suitable temperature for handling or processing.
- Oil and lubricant heating
- Viscous material heating
- Adhesive and resin processing
- Chemical material heating
- Paint and coating production
- Wax heating
- Food and beverage processing
- Material preheating before pumping
- Temperature maintenance during storage
- Industrial drum and barrel heating
20L and 200L Drum Heater Options
Standard configurations are available for common 20L and 200L drums.
- 20L / 5-gallon drum: 860 × 200 mm, 800W
- 200L / 55-gallon drum: 1740 × 125 mm, 1000W
- 200L / 55-gallon drum: 1740 × 250 mm, 2000W or 3000W
- Voltage: 110V or 220V AC
- Controller: Mechanical knob or digital temperature controller
For other drum sizes, heating areas or power requirements, custom drum heating solutions can be manufactured according to the application.
For help choosing the appropriate heater size and power, see our Oil Drum Heater Selection Guide.

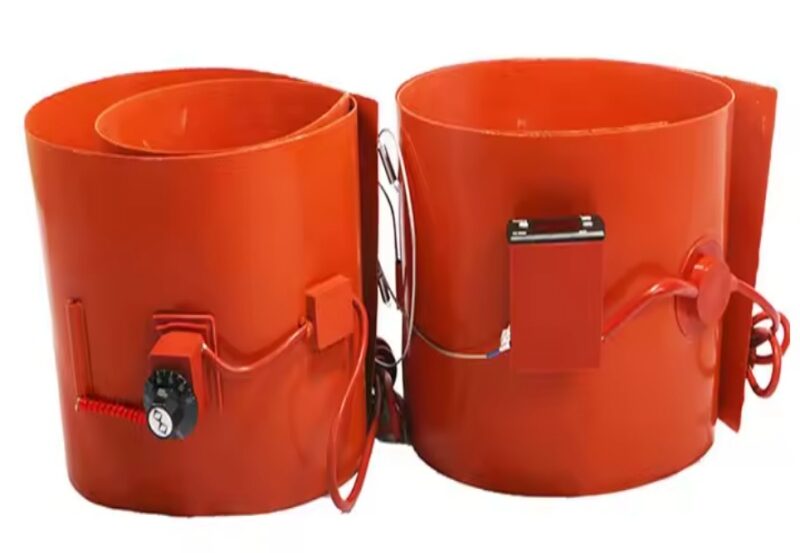

Temperature Control Options
Mechanical Knob Controller
The mechanical controller allows the operator to adjust the heating temperature using a rotary knob. The heater automatically switches heating off when the set temperature is reached and resumes heating when the temperature drops.
The typical control accuracy is approximately ±5°C.
Digital Temperature Controller
The digital controller provides more precise temperature adjustment and displays the measured drum-wall temperature. Depending on the configuration, control accuracy can be approximately ±1°C.
Some digital configurations can also include additional over-temperature protection.
Important: The controller normally measures the drum-wall temperature rather than the actual internal material temperature. For high-viscosity materials, the internal temperature may be lower than the measured drum-wall temperature.
How to Install an Industrial Drum Heater
The flexible heating blanket is designed for quick installation around the outside of the drum.
- Make sure the outside surface of the drum is clean and dry.
- Remove oil, water, dust and other contaminants from the heating area.
- Unfold the heating blanket and place the heating surface against the drum wall.
- Wrap the heater around the drum and ensure close contact with the surface.
- Avoid wrinkles, large gaps or loose sections between the heater and drum.
- Secure the heater using spring clips, straps or Velcro fastening systems.
- Keep the temperature controller away from the drum opening and possible liquid splashes.
- Arrange the power cable properly and avoid excessive pulling, crushing or bending.
- Ensure the electrical connection and grounding are suitable for the application.
The installation normally requires only a few minutes and no special tools. After use, the heater can be removed and reused on compatible drums.
Industrial Drum Heater Safety Instructions
Correct installation and operating conditions are important for safe and reliable drum heating.
- Do not operate the heater without proper contact with the drum. Avoid operating the heating blanket freely in air.
- Do not fold or sharply crease the heating blanket.
- Do not puncture or mechanically damage the silicone heating blanket.
- For plastic drums, keep the recommended operating temperature at or below 100°C to reduce the risk of deformation.
- Do not cover the heater with insulation materials unless the complete heating system has been designed for such use.
- Do not use a standard heater for flammable or explosive materials. An appropriate explosion-proof heating solution and application assessment are required.
- Keep controllers and electrical connections away from liquid spills.
- Disconnect the power supply before removing the heater.
- Stop using the heater if cracks, cuts, exposed wiring or other damage are found.
Custom Industrial Drum Heater Solutions
Standard drum heaters are suitable for common 20L and 200L applications. Custom production is recommended when the standard configuration does not match the drum size or heating requirements.
- Custom heater dimensions
- Custom drum diameter or height
- Custom voltage
- Custom wattage
- Custom temperature range
- Mechanical or digital temperature controller
- Custom lead-wire length and exit position
- Special fastening arrangements
- Customized heating coverage
Custom solutions can be developed for metal or plastic drums according to the drum dimensions, material being heated, required temperature and operating environment.
Industrial Drum Heater vs Other Flexible Heaters
A drum heater is specifically designed to wrap around cylindrical containers. It is suitable when the main requirement is to heat or maintain the temperature of material inside a drum or barrel.
For flat or curved equipment surfaces where an ultra-thin heating element is required, a Standard PI Heater may be more suitable.
For larger flat or customized industrial surfaces, a Silicone Rubber Heater can provide a thicker and more robust flexible heating solution.
Information Required for an Industrial Drum Heater Inquiry
To recommend a suitable configuration, please provide the following information:
- Drum capacity, such as 20L or 200L
- Drum material: metal, plastic or other material
- Drum diameter and height
- Working voltage
- Required heating power
- Target heating temperature
- Material being heated
- Required temperature-control method
- Required quantity
- Special installation or operating requirements
Send us your drum size, material, voltage and target temperature to receive a suitable Industrial Drum Heater recommendation and quotation.
Request an Industrial Drum Heater Quote
Need a standard drum heating blanket for a 20L or 200L drum, or a custom industrial drum heating solution?
Please send us your drum capacity, dimensions, material, voltage, required temperature and quantity. Our sales team can recommend a suitable configuration for your application.
Amy – Sales
Email: Amy-Easewise@tzheater.com
WhatsApp: +86 188 8318 8154
Hanna – Sales
Email: Hanna-Easewise@tzheater.com
WhatsApp: +86 173 5163 6811
Standard 20L and 200L drum heaters available. Custom industrial drum heating solutions supported.
