Built-in Thermocouple Cartridge Heater

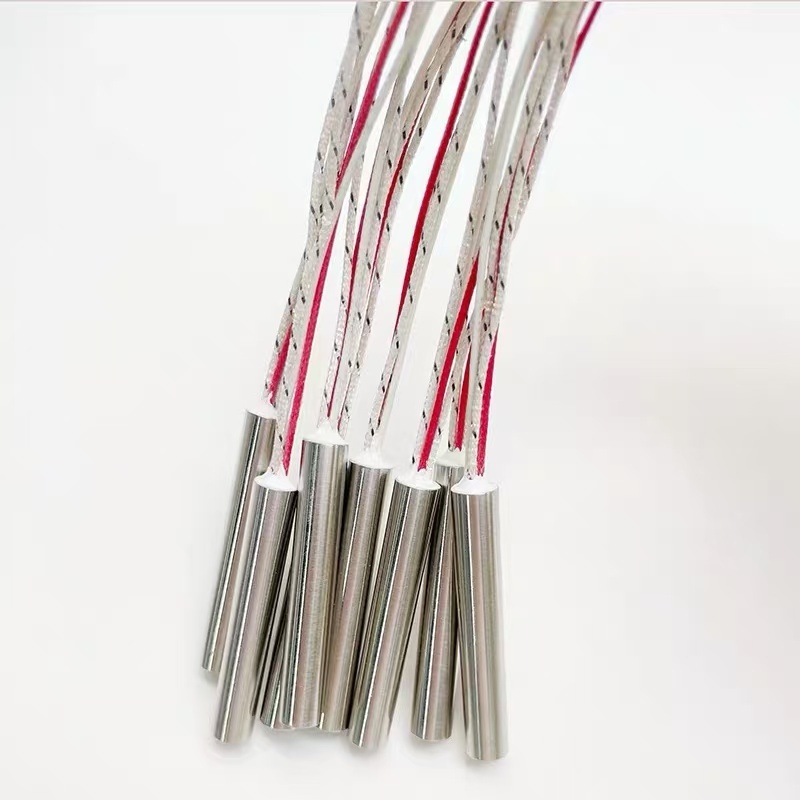

Cartridge Heater with Built-in Thermocouple

Cartridge Heater with Built-in Thermocouple combines heating and temperature sensing in one compact heating element.
The built-in K-type thermocouple provides real-time temperature feedback without requiring a separate sensor installation, making it suitable for precision molds, laboratory heating blocks, automation equipment and other applications requiring accurate temperature control.

The standard version uses a SUS321 stainless steel sheath, built-in K-type thermocouple and 220V power supply.
J-type thermocouple, special dimensions, higher watt density and other configurations are available for custom applications.

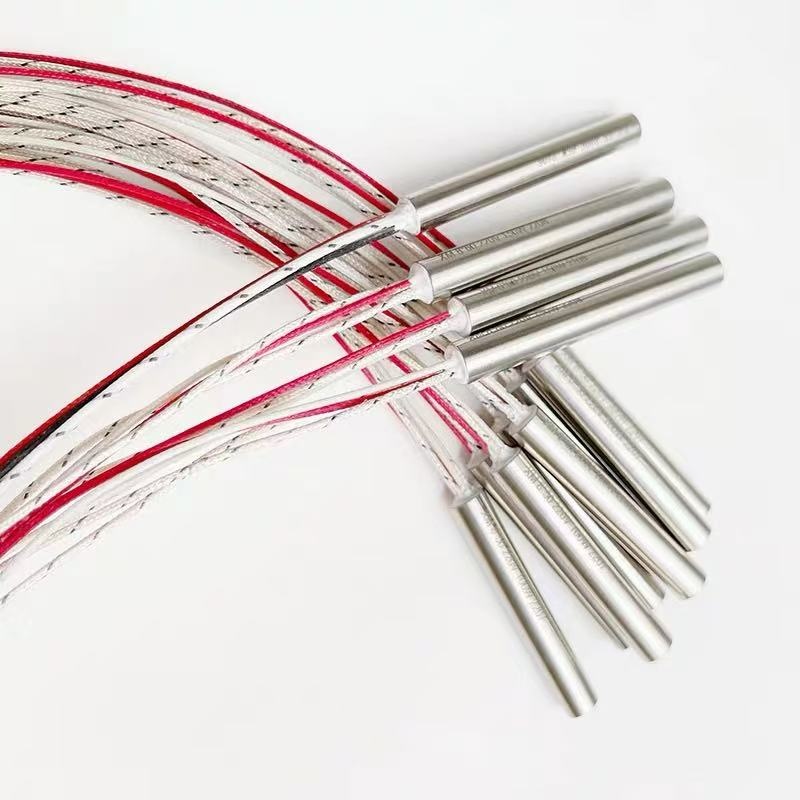

Built-in Thermocouple Design

• Built-in Sensor: K-type thermocouple for standard stock models
• Optional Sensor: J-type thermocouple available for custom orders
• Integrated Structure: Heating element and temperature sensor are combined inside one cartridge heater
• Temperature Feedback: Enables real-time temperature monitoring close to the heating area
• Temperature Accuracy: Approximately ±1–2°C depending on installation and control conditions
• Installation: Recommended H7 close-fit bore for stable heat transfer and temperature sensing

Product Specifications

Item	Specification
Product Type	Cartridge Heater with Built-in Thermocouple
Sheath Material	SUS321; SUS316L / Inconel 600 available for custom orders
Built-in Sensor	K-type Thermocouple standard; J-type custom
Insulation Material	High-purity compacted Magnesium Oxide (MgO)
Diameter	Φ8mm – Φ16mm stock; other diameters custom-made
Heated Length	80mm – 200mm stock; custom length available
Standard Voltage	220V
Custom Voltage	12V / 24V / 110V / 380V and other voltages
Watt Density	7–12 W/cm² for stock models
Power Tolerance	-10% ~ +5%
Maximum Working Temperature	Up to 600°C depending on construction and operating conditions
Lead Configuration	Separate heating wires and thermocouple signal wires
Installation Hole	H7 close-fit bore recommended

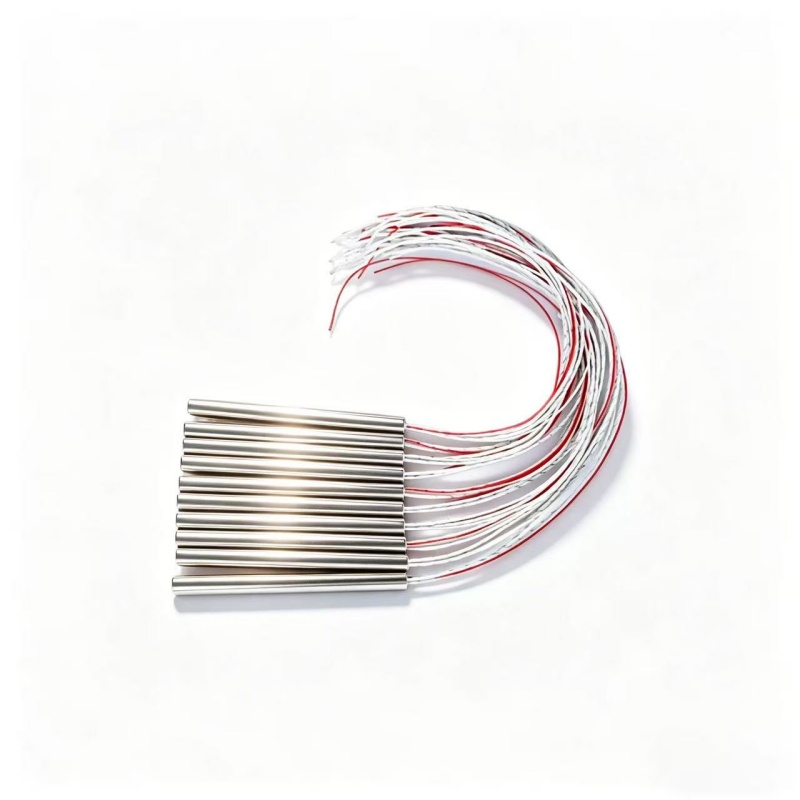

Stock Built-in Thermocouple Cartridge Heater Sizes

The following Cartridge Heater with Built-in Thermocouple models are available as standard stock sizes.
Stock models use a SUS321 sheath, 220V power supply, straight lead configuration and built-in K-type thermocouple.

Custom Cartridge Heater with Built-in Thermocouple

We support OEM and custom production for applications requiring integrated heating and temperature sensing.
Custom designs can be manufactured according to customer drawings, samples or application requirements.

• Custom diameter and heated length
• Custom overall length
• Custom voltage and power
• Custom watt density
• K-type or J-type thermocouple
• Custom thermocouple lead length
• Custom heating lead length and configuration
• SUS321 / SUS316L / Inconel 600 sheath options
• Miniature and special structural designs

Applications

• Precision injection molds requiring closed-loop temperature control
• Laboratory heating blocks and testing equipment
• Medical analytical instruments
• High-precision automation heating modules
• Packaging machinery temperature monitoring systems
• Precision hot runner heating units
• Industrial equipment requiring integrated heating and temperature sensing

Installation & Wiring Notes

• The heating wires and thermocouple wires are separate electrical circuits and must be connected correctly.
• Incorrect wiring may result in no heating, incorrect temperature readings or control-system errors.
• An H7 close-fit bore is recommended for stable heat transfer and accurate temperature sensing.
• The heated section should have good contact with the bore wall to minimize thermal resistance.
• For liquid or process heating, ensure the heated section is properly installed according to the application requirements.

FAQ

Q: What type of thermocouple is built into the cartridge heater?

A: The standard stock version uses a K-type thermocouple. J-type thermocouples are available for custom orders.

Q: Does the built-in thermocouple require a separate sensor hole?

A: No. The thermocouple is integrated into the cartridge heater, eliminating the need for a separate sensor hole near the heating element.

Q: Can the voltage and power be customized?

A: Yes. We can manufacture custom voltage, power, diameter, heated length, lead configuration and thermocouple type according to your requirements.

Q: Do you have built-in thermocouple cartridge heaters in stock?

A: Yes. Selected SUS321, 220V models with built-in K-type thermocouples are available as stock sizes. Please contact us for current availability.
