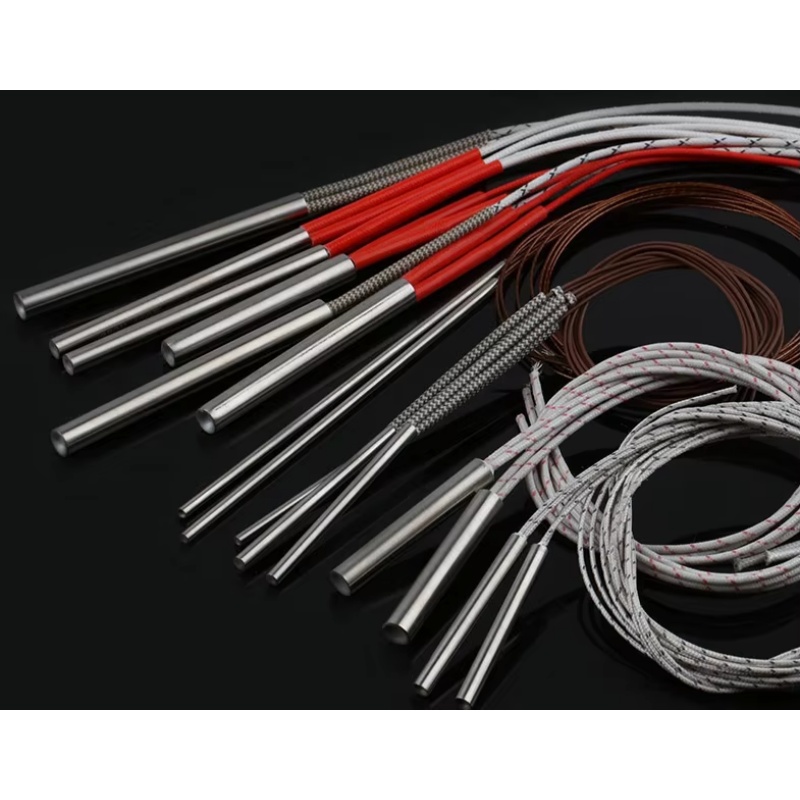

High-Density Cartridge Heater | Custom High Watt Density Heating Elements
High-density cartridge heaters are designed for rapid heating, concentrated heat transfer and industrial applications requiring high power output in a compact heating element. They are commonly used in injection molds, hot runner systems, precision tooling and industrial equipment where fast temperature response is required.
EaseWise supplies high-density cartridge heaters in selected standard sizes and coordinates custom production through vetted manufacturing partners according to customer drawings, samples and technical requirements. Available configurations can be customized by diameter, heated length, voltage, power, sheath material and lead-out arrangement.
Whether you need a standard model or a custom high-watt-density heating element for an OEM project, our team can review your requirements and help identify a suitable solution.
View All Cartridge Heaters |
Request a High-Density Cartridge Heater Quote
High-Density Cartridge Heater Construction and Materials

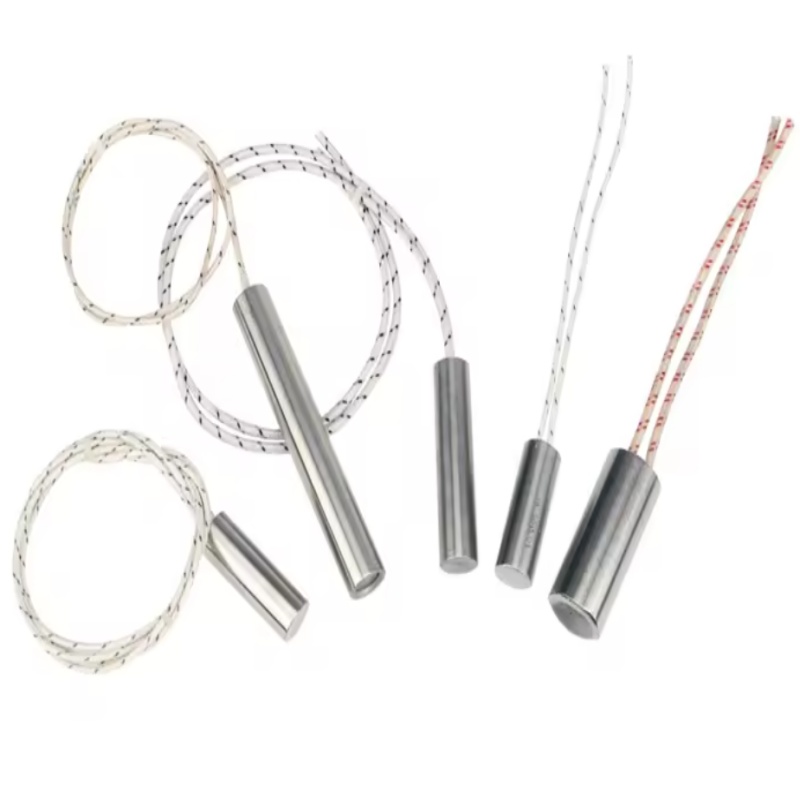

A high-density cartridge heater is a cylindrical electric heating element designed to be inserted into a drilled hole in a metal block, mold or other heating component. Its internal construction typically consists of a resistance heating wire, compacted magnesium oxide (MgO) insulation and a protective metal sheath.
When electrical current passes through the resistance wire, electrical energy is converted into heat. The heat transfers through the MgO insulation to the outer sheath and then into the surrounding material. Proper installation and close contact with the heated component help improve heat transfer.
| Component | Material / Description | Function |
|---|---|---|
| Resistance Heating Wire | Electrical resistance heating wire | Generates heat when electrical current passes through the element |
| Insulation | High-purity Magnesium Oxide (MgO) | Provides electrical insulation and supports heat transfer |
| Outer Sheath | SUS304 / SUS321 / SUS316L / Inconel 600 | Protects the internal heating assembly and transfers heat to the workpiece |
| Lead Wire | High-temperature fiberglass wire / silicone wire / metal braided sleeve | Connects the heater to the electrical power supply |
The final material combination should be selected according to operating temperature, electrical requirements, installation conditions and the intended service environment.
When selecting a high-density cartridge heater, the sheath material, insulation structure and installation dimensions should be reviewed together to ensure the design matches the operating environment.
High-Density Cartridge Heater Specifications
EaseWise can coordinate high-density cartridge heater configurations according to the electrical, mechanical and operating requirements of industrial equipment.
| Item | Specification |
|---|---|
| Product Type | High-Density Cartridge Heater |
| Outer Diameter | 6mm–20mm standard range; custom sizes available |
| Heated Length | Custom-made according to application requirements |
| Voltage | 12V–480V; common options include 220V / 380V |
| Power | Custom-made according to diameter and heated length |
| Watt Density | 18–35 W/cm², depending on design and application |
| Sheath Material | SUS304 / SUS321 / SUS316L / Inconel 600 |
| Insulation | High-purity Magnesium Oxide (MgO) |
| Lead Wire | High-temperature fiberglass wire / silicone wire / metal braided sleeve |
| Maximum Working Temperature | Up to 760°C, depending on heater construction and sheath material |
Note: The specifications above are reference options. Final electrical ratings and operating limits should be confirmed according to the selected heater construction, dimensions and actual application conditions.
High-Density Cartridge Heater Heating Performance
High-density cartridge heaters can provide a watt density of approximately 18–35 W/cm², making them suitable for applications requiring rapid heat-up and concentrated heating in a limited installation space.
Watt density describes the electrical power applied per unit of heated surface area. A higher watt density can increase heating speed and power output, but it also makes installation fit, heat transfer and temperature control more important.
- Rapid temperature rise for short-cycle heating processes
- High power output in a compact heating element
- Concentrated heating for molds, nozzles and tooling
- Suitable for close-fit metal bore installations
- High-purity MgO insulation for electrical insulation and heat transfer
- Custom watt density according to application requirements
Actual achievable watt density depends on heater diameter, heated length, bore clearance, the material being heated and operating conditions. The appropriate design should be evaluated before production. A high watt density should not be selected without considering the ability of the surrounding material to absorb and dissipate heat.
Stock High-Density Cartridge Heater Sizes
The following models are listed as standard stock sizes. Please contact our team to confirm current inventory and availability before ordering. Custom voltage, power, diameter and heated length can also be discussed.
| Diameter (mm) | Heated Length (mm) | Voltage | Power (W) | Watt Density (W/cm²) | Availability |
|---|---|---|---|---|---|
| Φ6 | 60 | 220V | 220 | 19.5 | Stock model |
| Φ6 | 80 | 220V | 280 | 18.5 | Stock model |
| Φ8 | 80 | 220V | 380 | 18.8 | Stock model |
| Φ8 | 100 | 220V | 480 | 19.1 | Stock model |
| Φ8 | 120 | 220V | 580 | 19.2 | Stock model |
| Φ10 | 100 | 220V | 600 | 19.1 | Stock model |
| Φ10 | 120 | 220V | 750 | 19.8 | Stock model |
| Φ10 | 150 | 220V | 900 | 19.1 | Stock model |
| Φ12 | 100 | 220V | 850 | 22.5 | Stock model |
| Φ12 | 120 | 220V | 1000 | 22.1 | Stock model |
| Φ12 | 150 | 220V | 1200 | 21.2 | Stock model |
| Φ12 | 200 | 220V | 1450 | 19.2 | Stock model |
| Φ16 | 150 | 220V | 1600 | 19.8 | Stock model |
| Φ16 | 200 | 220V | 2100 | 20.8 | Stock model |
Need a different diameter, heated length, voltage or wattage? Send us your specifications and quantity. Our team can check the available model or coordinate a custom configuration.
Custom High-Density Cartridge Heater Options
For OEM projects and equipment with specific installation dimensions, EaseWise can coordinate custom high-density cartridge heater production through vetted partner factories based on customer drawings, samples or technical specifications.
Dimensions and Electrical Specifications
- Custom outer diameter
- Custom heated length and overall length
- Custom voltage and power
- Application-based watt density selection
Materials and Lead-out Options
- SUS304 / SUS321 / SUS316L / Inconel 600 sheath options
- Different lead-wire types and custom lead-wire lengths
- High-temperature fiberglass wire / silicone wire / metal braided sleeve
- Straight or special lead-out configurations, subject to design confirmation
For projects requiring specific dimensions, electrical specifications or production quantities, visit our Custom Cartridge Heater OEM Solutions page.
Send us your DXF / PDF drawing, required diameter, heated length, voltage, power and quantity for a custom quotation.
Each custom high-density cartridge heater configuration should be reviewed according to the required voltage, wattage, heated length and installation conditions.
How Does a High-Density Cartridge Heater Work?
A high-density cartridge heater converts electrical energy into heat through resistance heating. When current passes through the internal resistance wire, heat is generated and transferred through the insulation to the metal sheath.
After installation in a properly sized metal bore, heat transfers from the heater sheath into the surrounding mold, metal block or equipment component, primarily through conduction.
- Electrical input: Electrical current flows through the resistance heating wire.
- Heat generation: The resistance wire converts electrical energy into thermal energy.
- Insulation and transfer: MgO insulation electrically separates the resistance wire from the sheath while allowing heat to transfer outward.
- Workpiece heating: The metal sheath transfers heat to the surrounding material through the installation interface.
This construction makes cartridge heaters suitable for localized heating inside molds, dies, metal blocks and other equipment components.
For a more general explanation of cartridge heater construction and operation, read How Does a Cartridge Heater Work?.
Installation Fit and Heat Transfer Considerations
Installation fit is an important factor in high-density cartridge heater performance. Cartridge heaters are normally inserted into drilled holes, where heat is transferred from the outer sheath to the surrounding metal through the contact interface.
Excessive clearance between the heater and installation bore can reduce heat transfer efficiency. Under high-power operating conditions, poor heat transfer may cause the heater sheath and internal components to operate at higher temperatures than intended.
- Check bore dimensions: Confirm the installation hole diameter and heater outer diameter before ordering.
- Consider heated length: Match the heated section to the actual heating area of the equipment.
- Review heat transfer: Ensure the surrounding material can absorb and dissipate the required heat.
- Confirm operating conditions: Consider operating temperature, heating cycles and temperature control requirements.
- Protect lead wires: Allow sufficient space for lead routing and avoid unnecessary bending or mechanical stress.
For high-watt-density applications, the heater specification should be reviewed together with the installation design. Providing a drawing or bore dimensions helps our team evaluate a more suitable configuration.
High-Density Cartridge Heater Applications
High-density cartridge heaters are commonly selected for equipment requiring fast localized heating, concentrated heat output and compact installation.
- Hot runner nozzles and hot runner mold systems
- Injection molds and precision mold inserts
- Die-casting nozzles and hot stamping tools
- Heat-sealing jaws and high-speed packaging machinery
- Plastic extruder local heating
- Short-cycle rapid heating equipment
- Automation machinery requiring fast temperature rise
- Test fixtures and laboratory rapid-heating blocks
For a broader overview of cartridge heater applications, visit our Cartridge Heater Applications page.
For applications requiring a smaller heating element and limited installation space, see our Miniature / Micro Cartridge Heater.
Common Cartridge Heater Installation Issues
Incorrect installation or unsuitable operating conditions can affect cartridge heater performance and service life. The following table summarizes common issues and the points to review during heater selection and installation.
| Potential Issue | Possible Cause | Recommended Consideration |
|---|---|---|
| Premature heater failure | Excessive watt density or insufficient heat transfer | Review watt density against actual operating conditions |
| Poor heat transfer | Excessive clearance between the heater and installation bore | Check heater and bore dimensions |
| Electrical insulation problems | Moisture entering the MgO insulation | Keep heaters properly stored and protected from moisture |
| Lead wire damage | Repeated bending, vibration or mechanical stress | Confirm lead direction, routing and installation space |
| Overheating | Unsuitable power rating or inadequate heat dissipation | Review power, installation fit and temperature control |
These are general installation and operating considerations. The actual cause of a heater problem should be evaluated according to its electrical readings, physical condition and operating environment.
Cartridge Heaters with Built-in Thermocouples
Some applications require temperature measurement close to the heating element. A cartridge heater with a built-in thermocouple can combine heating and temperature sensing in one assembly, subject to the selected construction and design requirements.
Thermocouple type, sensor position, lead arrangement and operating conditions should be confirmed during specification review.
View Cartridge Heater with Built-in Thermocouple
High-Density Cartridge Heater vs. Standard Cartridge Heater
The main difference is the heating power delivered over the heated surface. High-density designs are intended for applications requiring faster heat-up or concentrated heating, while standard cartridge heaters are suitable for more general industrial heating requirements.
| Comparison | High-Density Cartridge Heater | Standard Cartridge Heater |
|---|---|---|
| Heating Requirement | Rapid, concentrated heating | General industrial heating |
| Watt Density | Higher, application-dependent | Generally lower, design-dependent |
| Typical Applications | Molds, nozzles and short-cycle equipment | General heating blocks and industrial equipment |
| Selection Focus | Heat transfer, bore fit and operating conditions | Dimensions, power and operating conditions |
If you need a conventional configuration for general industrial heating, visit our Standard Cartridge Heater page.
Frequently Asked Questions
What is a high-density cartridge heater?
A high-density cartridge heater is a cylindrical electric heating element designed to deliver concentrated heat output from a compact structure. It is commonly installed in drilled holes in molds, metal blocks and industrial equipment.
How does a high-density cartridge heater work?
Electrical current passes through the internal resistance wire and generates heat. The heat transfers through MgO insulation to the metal sheath and then into the surrounding workpiece, primarily through conduction.
What affects cartridge heater watt density?
Watt density selection depends on heater diameter, heated length, required power, installation fit, the material being heated and operating conditions. The maximum suitable watt density should be evaluated for each application.
Why is installation fit important for a cartridge heater?
Cartridge heaters transfer heat through the contact interface between the outer sheath and the surrounding installation bore. Excessive clearance can reduce heat transfer and increase the heater’s operating temperature.
Can a cartridge heater have a built-in thermocouple?
Yes. Certain cartridge heater constructions can integrate a thermocouple for temperature sensing. Sensor type, position and lead arrangement should be confirmed according to the application.
Can EaseWise supply custom high-density cartridge heaters?
Yes. EaseWise can coordinate custom high-density cartridge heater solutions through vetted partner factories. Customers can provide drawings, samples or technical specifications for review and quotation.
What information is needed for a quotation?
Please provide the required diameter, heated length, voltage, wattage, quantity, sheath material and lead-wire requirements. A DXF or PDF drawing is helpful for custom projects.
Cartridge Heater Selection and Technical Resources
Choosing the correct heating element requires consideration of heater construction, sheath material, watt density, installation fit and operating temperature. The following resources provide additional information for equipment designers and purchasing teams.
- How Does a Cartridge Heater Work?
- Cartridge Heater Applications: Industrial Heating Guide
- Cartridge Heater Materials and Performance Comparison
- Cartridge Heater Manufacturer and Industrial Heating Solutions
Request a High-Density Cartridge Heater Quote
Looking for stock high-density cartridge heaters or custom OEM heating elements? Send EaseWise your requirements so our team can review the specifications, check availability and prepare a quotation.
EaseWise supplies high-density cartridge heaters for industrial equipment and OEM projects, with configurations reviewed according to drawings and technical requirements.
For a faster quotation, please provide:
- Required outer diameter and heated length
- Voltage and wattage
- Required watt density, if specified
- Sheath material and lead-wire requirements
- Application and operating temperature
- Order quantity
- DXF / PDF drawing or product sample, if available
Our team will review your requirements and typically respond within 12 hours.
Contact EaseWise Sales
Amy – Sales
Email: amy-EaseWise@tzheater.com
WhatsApp: +86 188 8318 8154
Hanna – Sales
Email: Hanna-EaseWise@tzheater.com
WhatsApp: +86 173 5163 6811
Send your drawing and technical requirements to receive a quotation for your project.
Stock models and custom high-density cartridge heater solutions available. Contact EaseWise for current availability, pricing and OEM requirements.
