How Does a Cartridge Heater Work? – Complete Guide

How does a cartridge heater work? A cartridge heater converts electrical energy into heat through a resistance heating coil. The generated heat passes through the electrical insulation and metal sheath before transferring to the surrounding component. Cartridge heaters are widely used in injection molding, hot runner systems, packaging equipment, molds, dies, and industrial automation where localized heating is required.

This guide explains the working principle, key performance factors, common applications, and basic selection considerations for cartridge heaters.

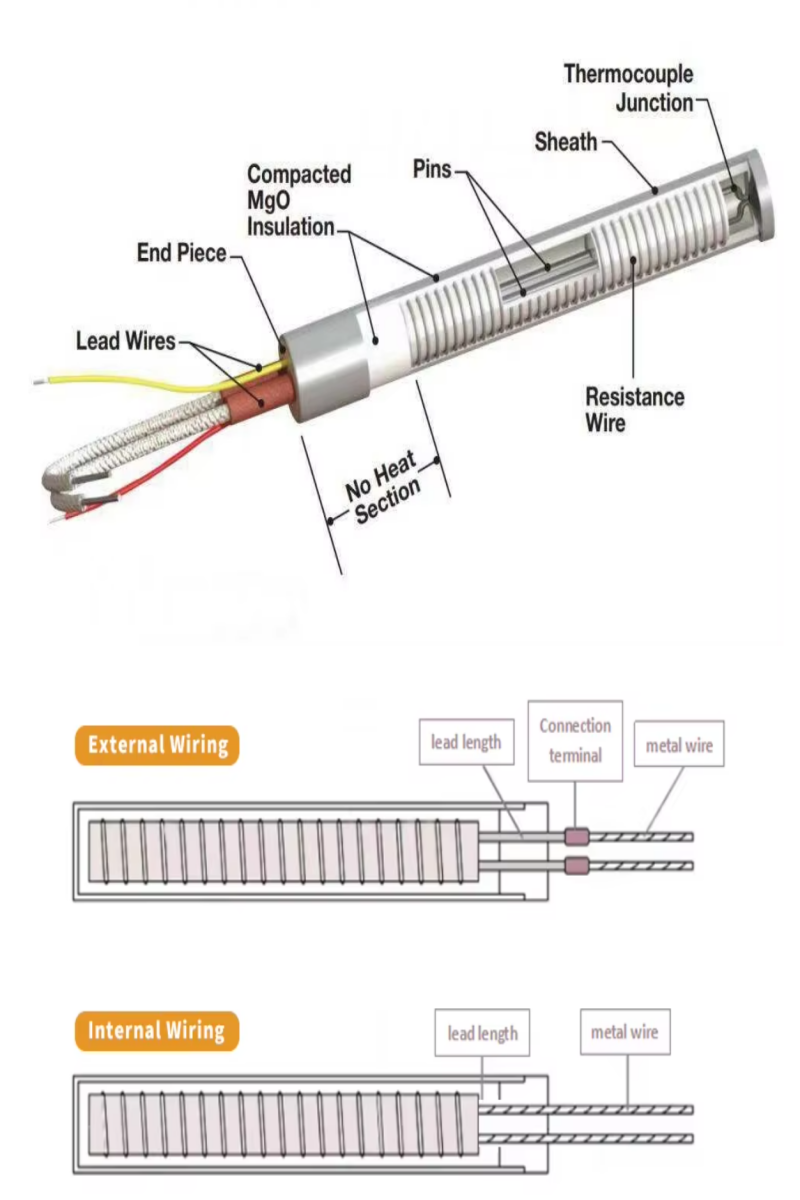

How It Works in 2 Minutes

1. Electrical current flows through the resistance heating coil.
2. The resistance coil converts electrical energy into heat.
3. Heat passes through the electrical insulation, typically compacted MgO.
4. Heat transfers through the metal sheath to the surrounding component.

Heat transfer is primarily by conduction because the heater is normally installed inside a drilled bore or heating block. Good contact between the heater and bore is therefore important for efficient heat transfer and reliable service life.

Need a custom size or power? Tell us your diameter, length, voltage and wattage → Get a Quote in 24 Hours

What Determines Cartridge Heater Performance?

• Watt density: Higher watt density can provide faster heating, but requires suitable installation, materials and temperature control.
• Sheath material: Stainless steel, Incoloy/Inconel and other sheath options can be selected according to operating temperature and the surrounding environment.
• Installation fit: Proper bore sizing and good heater-to-bore contact help improve heat transfer and reduce localized overheating.
• Built-in thermocouple: An integrated thermocouple can combine heating and temperature sensing in applications where installation space is limited.

Unsure which configuration fits your process? We offer free engineering support to match the heater design to your application.

Common Cartridge Heater Applications

Cartridge heaters are commonly used in:

• Injection molding and hot runner systems
• Plastic processing machinery
• Molds, dies, and heating blocks
• Packaging and labeling equipment
• Laboratory and medical devices
• Automation and hot melt equipment

View detailed cartridge heater application examples →

Product Range – Find Your Match

FAQ – Quick Answers

How hot can a cartridge heater get?
The maximum operating temperature depends on the heater construction, sheath material, watt density, installation and application conditions.

What's the difference between wattage and watt density?
Wattage is the heater's total electrical power. Watt density is the power applied over the heated surface area, usually expressed in W/cm². Higher watt density can provide faster heating but requires suitable design and installation.

Can I get a custom length or power?
Yes. Diameter, length, voltage, power, sheath material and lead configuration can be customized according to the application.

Do you offer samples?
Yes. Samples are available for testing and application validation.
