L-Shape Cartridge Heater

L-Shape Cartridge Heater

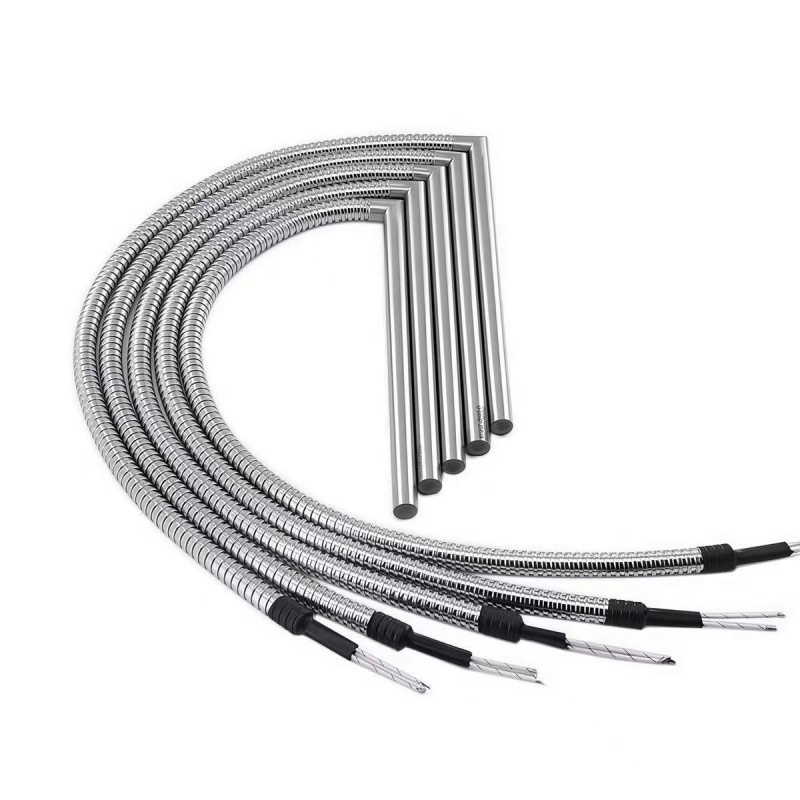

L-Shape Cartridge Heater is designed for applications where a cartridge heating element must fit into compact or angled installation spaces. Its 90-degree L-shaped lead configuration helps simplify wiring, reduce installation space and avoid interference with surrounding components.

Our L-Shape Cartridge Heaters are available in standard stock sizes and can also be custom-made according to your required diameter, heated length, voltage, power and lead configuration. SUS321 is available for standard applications, while SUS316L and Inconel 600 can be supplied for special operating environments.

L-Shape Cartridge Heater Specifications

Item	Specification
Product Type	L-Shape Cartridge Heater
Lead Configuration	90-degree L-shaped lead outlet
Diameter	6mm – 20mm standard range, custom sizes available
Heated Length	Custom-made according to application requirements
Voltage	12V – 480V, common 220V / 380V
Power	Custom-made according to diameter and heated length
Watt Density	Application-dependent, typically 8 – 15 W/cm²
Sheath Material	SUS321; SUS304 / SUS316L / Inconel 600 available for custom orders
Insulation	High-purity compacted Magnesium Oxide (MgO)
Lead Wire	High-temperature fiberglass wire, silicone wire or customized lead wire
Standard Lead Length	300mm, customizable
Power Tolerance	-10% ~ +5%
Maximum Working Temperature	Up to 600°C depending on heater construction and sheath material

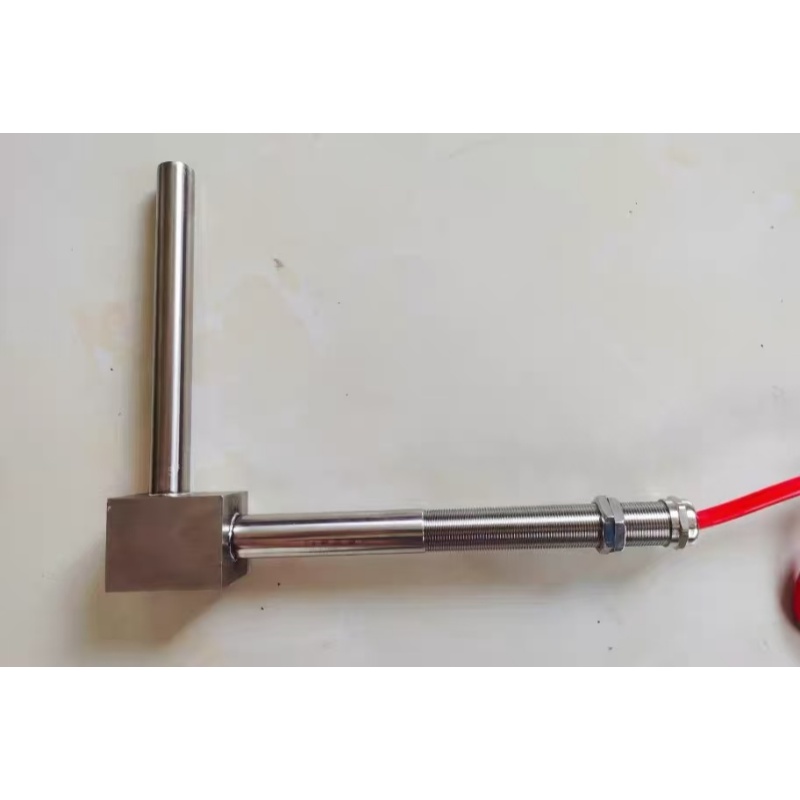

90-Degree L-Shaped Lead Configuration

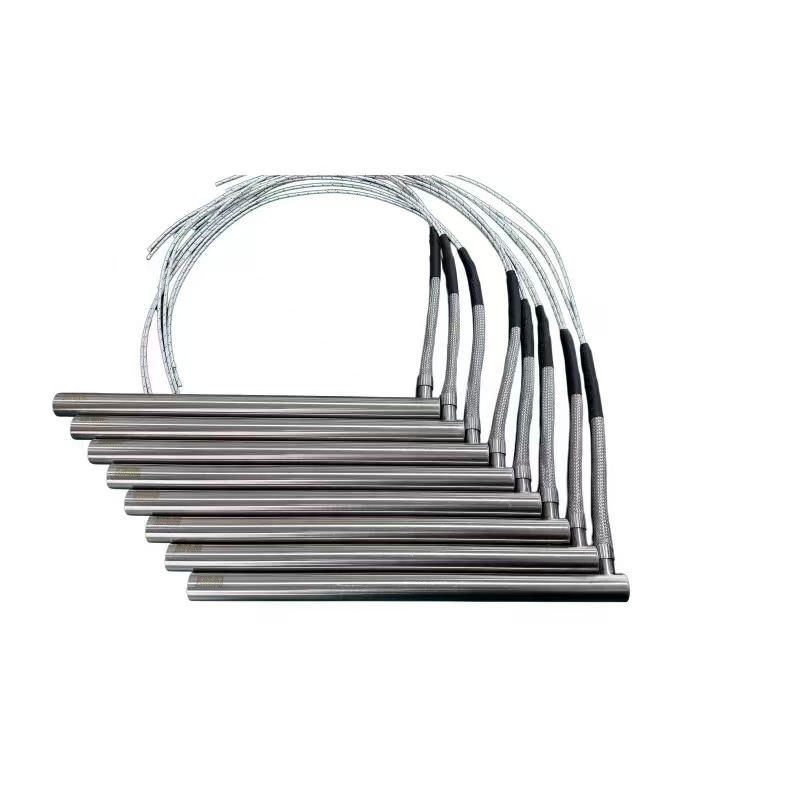

The main feature of an L-Shape Cartridge Heater is its 90-degree angled lead configuration. Instead of extending straight from the heater tube, the lead wires are routed at a right angle to help reduce installation space and avoid interference with surrounding molds, machine components and wiring.

• 90-degree L-shaped lead outlet for compact wiring
• Suitable for limited installation spaces
• Helps avoid interference with molds and machine components
• Suitable for fixed and close-fit cartridge heater installations
• Custom lead direction and lead length available
• Available with different heater diameters and heated lengths

For applications where installation space is extremely limited, a
Miniature / Micro Cartridge Heater
can provide a more compact heating solution.

Stock L-Shape Cartridge Heater Sizes

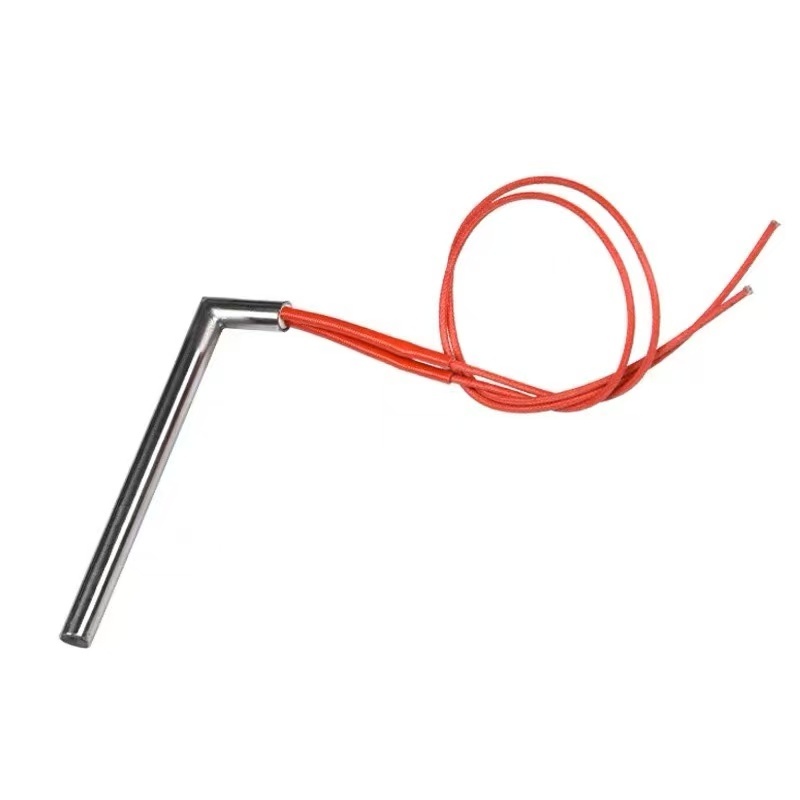

The following L-Shape Cartridge Heater configurations are available as standard stock models. Custom diameter, heated length, voltage, power and lead configurations are also available.

Custom L-Shape Cartridge Heater

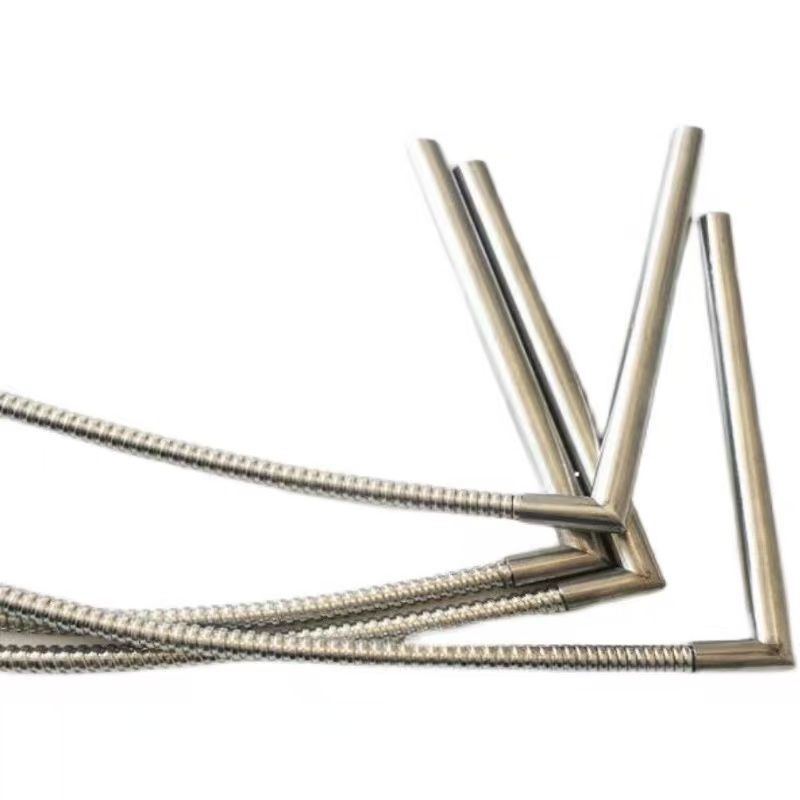

We support OEM and custom production of L-Shape Cartridge Heater assemblies for special installation requirements.

• Custom heater diameter
• Custom heated length and overall length
• Custom voltage and power
• Custom watt density
• 90-degree L-shaped lead configuration
• Custom lead-wire length
• Custom lead direction and outlet position
• SUS304 / SUS321 / SUS316L / Inconel 600 sheath options
• Custom terminal and electrical connection configurations

For applications requiring particularly high heat output in a compact area,
High-Density Cartridge Heater
is another available option.

Applications

• Injection molds and precision mold inserts
• Hot runner systems and hot runner components
• Packaging and heat-sealing machinery
• Plastic processing equipment
• Laboratory heating blocks and test equipment
• Automation equipment with limited wiring space
• Precision heating assemblies
• Equipment requiring angled lead-out installation

Why Choose an L-Shape Cartridge Heater?

• Space-saving 90-degree lead configuration
• Improved cable routing in compact equipment
• Fast heat transfer through close-fit installation
• Suitable for precision localized heating
• Multiple diameter, length, voltage and power options
• OEM customization available

For conventional straight-lead heating applications, our
Standard Cartridge Heater
provides a simple and versatile cartridge heating solution.

FAQ

Q: What is an L-Shape Cartridge Heater?
A: An L-Shape Cartridge Heater is a cartridge heating element with a 90-degree angled lead outlet. It is designed for applications where a straight lead configuration would require too much installation space or interfere with surrounding components.

Q: What diameters are available?
A: Standard diameters are available across common cartridge heater sizes, including approximately 6mm to 20mm. Special diameters can be manufactured according to customer requirements.

Q: Can the L-shaped lead direction be customized?
A: Yes. Lead length, lead direction, outlet position and wire type can be customized for OEM applications.

Q: Can you manufacture custom voltage and power?
A: Yes. Voltage, power, heated length, diameter and lead configuration can all be customized according to the application.

Q: Are L-Shape Cartridge Heaters suitable for hot runner systems?
A: Yes. They are suitable for hot runner components, molds and other precision heating applications where compact wiring and localized heating are required.

Related Cartridge Heater Products

We offer several cartridge heater configurations for different installation, heating and temperature-control requirements:

•
  Standard Cartridge Heater

•
  High-Density Cartridge Heater

•
  Miniature / Micro Cartridge Heater

•
  L-Shape Cartridge Heater

•
  Cartridge Heater with Built-in Thermocouple

•
  Threaded Cartridge Heater

•
  Flange-Mount Cartridge Heater


Contact Us for Stock or Custom L-Shape Cartridge Heaters

Need an L-Shape Cartridge Heater for your equipment?
Contact our sales team for stock availability, pricing or custom production.
Please send your required diameter, heated length, voltage, power and lead configuration.

Stock sizes available. Custom L-Shape Cartridge Heaters supported.
